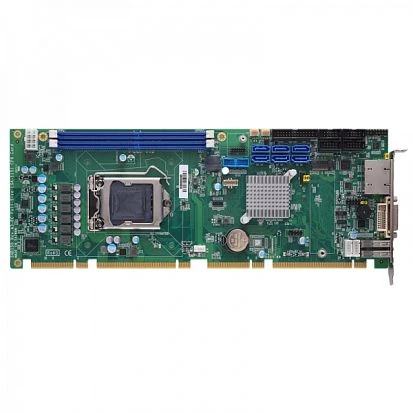

SHB150RDGG-H310 w/PCIe x4
AXIOMTEK
SKU: 08951400
LGA1151 Socket Intel Coffee Lake Core i7/i5/i3 PCIMG 1.3, Intel H310 PCH, up to 64GB DDR4, DVI-I/DP, 2xGbE LAN, 2xRS-232, 2xRS-232/422/485, 4xUSB 3.1, 6xUSB 2.0, 6xSATA-600, LPT, Audio
Price on request
Available
Available
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
6
USB v3.x
4
LPT
LPT
Audio
Audio Controller
Intel HD Audio
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, LPT, USB 2.0, TPM, 4xSATA, USB 3.0, Display port
Connectors
DVI-I, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
126 mm
Length
338 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1.3 kg
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
6
USB v3.x
4
LPT
LPT
Audio
Audio Controller
Intel HD Audio
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, LPT, USB 2.0, TPM, 4xSATA, USB 3.0, Display port
Connectors
DVI-I, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
126 mm
Length
338 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1.3 kg
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
6
USB v3.x
4
LPT
LPT
Audio
Audio Controller
Intel HD Audio
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, LPT, USB 2.0, TPM, 4xSATA, USB 3.0, Display port
Connectors
DVI-I, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
126 mm
Length
338 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1.3 kg
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
6
USB v3.x
4
LPT
LPT
Audio
Audio Controller
Intel HD Audio
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, LPT, USB 2.0, TPM, 4xSATA, USB 3.0, Display port
Connectors
DVI-I, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
126 mm
Length
338 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1.3 kg
