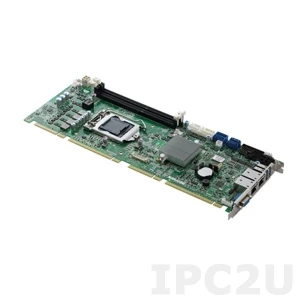

PEAK-887VL2

PEAK-887VL2

NEXCOM
SKU: 06330600
PICMG 1.3 Intel Core i3/i5/i7 LGACPU Card, Intel Q87 Chipset, up to 16GB DDR3/DDR3L 1066/1333/1600, VGA, 2xGbE LAN, 6xSATA, 8xUSB, 4xCOM
Price on request
Available
Available
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
CPU Support Type
Core i3, Core i5, Core i7
Socket
LGA1150
Chipset
Chipset
Intel Q87
Memory
Form-factor
DDR3L
Socket Type
2xDIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i211
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
LPT
LPT
Drive interfaces
RAID Levels
1, 5, 10
Connectors
Internal Ports
IRDA, 4xCOM, LPT, 4-pin ATX, 10-pin Audio, 2x6-pin USB, 4xSATA, 19-pin USB 3.0
Connectors
DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
126.4 mm
Length
338.6 mm
Operating Conditions
Operating Temperature
-15..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.2 kg
Gross Weight
1.2 kg
