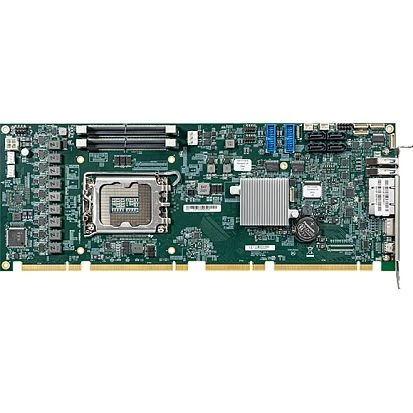

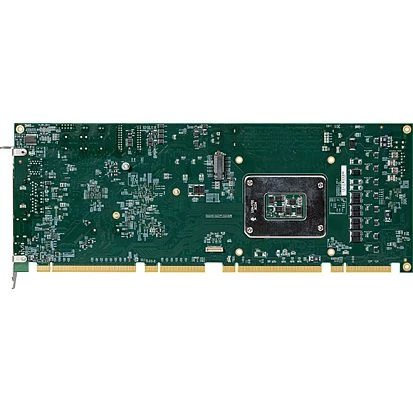

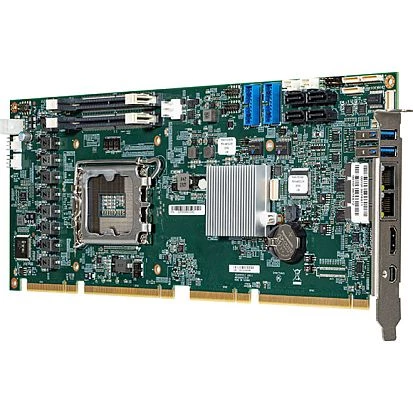

PEAK-890VL2-Q
NEXCOM
SKU: 57979800
CPU Board SBC PICMG 1.3 with Intel Core i3/i5/i7 13/12th Gen, LGA1700, Intel Q670E, 2xSODIMM DDR5 up to 64 GB, HDMI,mini DP, 2x2.5G LAN, 4xSATA (+2xSATA Backplane), 6xUSB (+8xUSB backplane), 2xCOM, 1xATX 4-pin 12 V
Price on request
Available on order
Available on order
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
2xDIMM
ECC
Yes
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA, 1x Mini DP
Ethernet
Controller Type
Intel WGI225LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
14
USB 2.0
8
USB v3.x
6
Drive interfaces
SATA 3
6
RAID Levels
0, 1, 5, 10
M.2
1
Extension Slots
Total
10
PCI Express x16
1
PCI Express x8
2
PCI Express x4
1
M.2
1
M.2 Form Factor
2280 M
PCI
4
PICMG
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xCOM, 4xSATA 3, 4x4-pin USB 2.0, 4x19-pin USB 3.0
Connectors
4-pin ATX, HDMI, 2xRJ45 Ethernet, 2xUSB, 1xMini DisplayPort
Software
Operating System Compatibility
Ubuntu, Windows IoT Enterprise 10, Windows 10
Dimensions and weight
Width
338.58 mm
Length
126.39 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.84 kg
Gross Weight
0.84 kg
