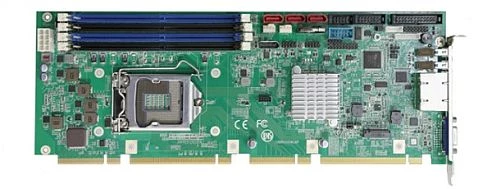

HiCORE-i89Q2-V-x4
Arbor
SKU: 08050500
Full-Size PICMG 1.3, Intel Core i7/i5/i3, LGA 1151, Q170, 4xDDR4 Long-DIMM 2133/1866 MHz up to 64 Gb, VGA, DP, COM, 2xGb LAN, 3xSATAIII RAID 0/1/5/10, M.2, DIO 8-bit, 10xUSB, KBMS, Audio, 1xPCIe x4, PCIe x16, 4xPCI, LPC, power 12 V
Price on request
Available
Available
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
CPU Support Type
Core i3, Core i5, Core i7
Socket
LGA1151
Number of CPU
1
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
4xDIMM
Maximum Memory
64 GB
Graphic
Interfaces
DisplayPort, VGA
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
10
USB 2.0
8
Digital Input-Output
Channels of DIO
0
Drive interfaces
RAID Levels
1, 5, 10
Extension Slots
Total
5
PCI Express x1
4
M.2
1
PCI
4
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
8x4-pin USB 2.0
Connectors
4-pin ATX, DB15 VGA, 2xRJ45 Ethernet, 2xUSB, Display Port
Software
Operating System Compatibility
Ubuntu, Windows 10
Dimensions and weight
Width
338 mm
Length
126 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.2 kg
