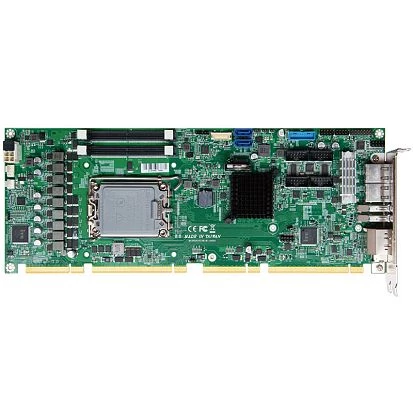

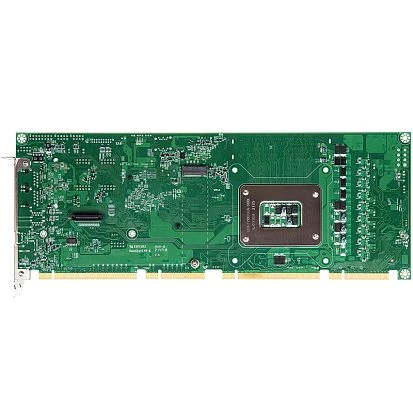

ROBO-8116G2AR
Portwell
SKU: 09954700
PICMG 1.3 12th Gen Intel Core CPU LGA1700 R680E Card with DDR5, DVI-D, HDMI, DP, 2x2.5GbE LAN, 4xCOM, 5xUSB 3.2, 4xUSB 2.0, 4xSATA 3, M.2 2280 M
Price on request
Available
Available
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Intel WGI225LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
9
USB 2.0
4
USB v3.x
5
Audio
Audio Controller
Realtek ALC888
Drive interfaces
RAID Levels
1, 5, 10
M.2
1
Extension Slots
Total
1
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 3, 2x14-pin RS-232/422/485, 2x10-pin RS-232, 4x4-pin USB 2.0, GPIO, 19-pin USB 3.0, 8-pin ATX
Connectors
DVI-D, HDMI, 2xRJ45 Ethernet, 2xUSB, Display Port, USB type C
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
126.39 mm
Length
338.5 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.8 kg
Gross Weight
1.3 kg
