ROBO-8114VG2AR-Q370

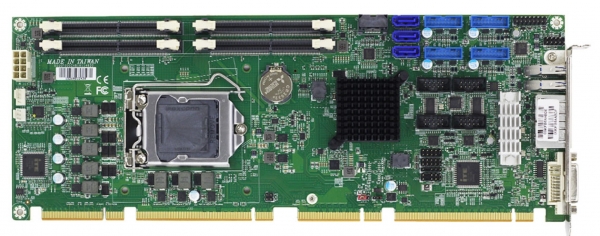

ROBO-8114VG2AR-Q370

Portwell
SKU: 09227300
PICMG 1.3 Intel Xeon/Core i7/i5/i3/Pentium/Celeron LGA1155 CPU Card with Intel Q370, DDR4, HDMI, DVI-I, 2xGbE LAN, 4xCOM, 2xUSB 3.1, 8xUSB 3.0, Audio, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
4xSODIMM
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel WGI210AT 10/100/1000 Mbps, Intel WGI219LM 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
16
USB 2.0
4
USB v3.x
12
Drive interfaces
RAID Levels
1, 5, 10
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, SATA 3, USB 3.0, 8-pin ATX
Connectors
DVI, RJ45 Ethernet, 2xUSB
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
126.39 mm
Length
338.5 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.9 kg
Gross Weight
0.9 kg
