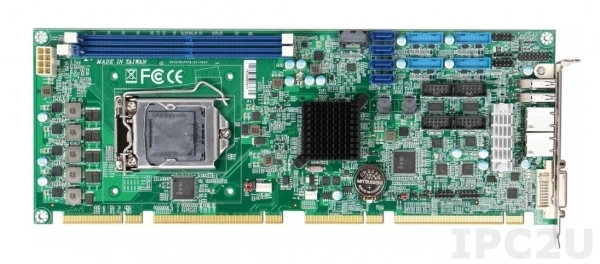

ROBO-8113VG2AR

ROBO-8113VG2AR

Portwell
SKU: 06994400
Single Board Computer PICMG 1.3 Intel Xeon E3-1200v5 ( Supports Intel 6th Skylake-S) LGA1151, chipset Intel C236, up to 32GB DDR4,DVI-I, HDMI, 2xGb LAN, 10xUSB3.0, 4xCOM, 4xSATA3, Audio header
Price on request
Available
Available

System Architecture
Form Factor
Full Size PICMG 1.3
CPU
CPU Support Type
Core i3, Xeon
Socket
LGA1151
Chipset
Chipset
Intel C236
Memory
Form-factor
DDR4
Socket Type
2xDIMM
ECC
Yes
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I, HDMI
Ethernet
Controller Type
Intel WGI210AT 10/100/1000 Mbps, Intel WGI219LM 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB v3.x
10
Audio
Audio Controller
Realtek ALC886-GR
Drive interfaces
RAID Levels
1, 5, 10
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xSATA 3, 2x10-pin RS-232, 10-pin Audio, HDMI, 8-pin KB/MS, 8-pin ATX, 2x10-pin RS-232/422/485, 4x19-pin USB 3.0
Connectors
DVI-I, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
126.39 mm
Length
338.5 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.8 kg
Gross Weight
1.3 kg
