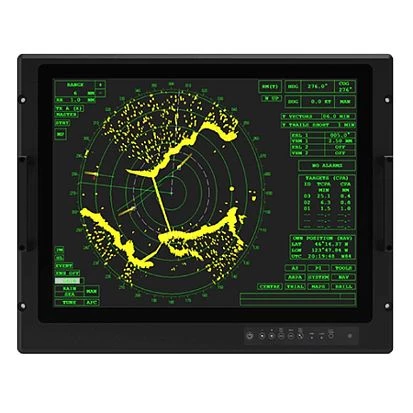

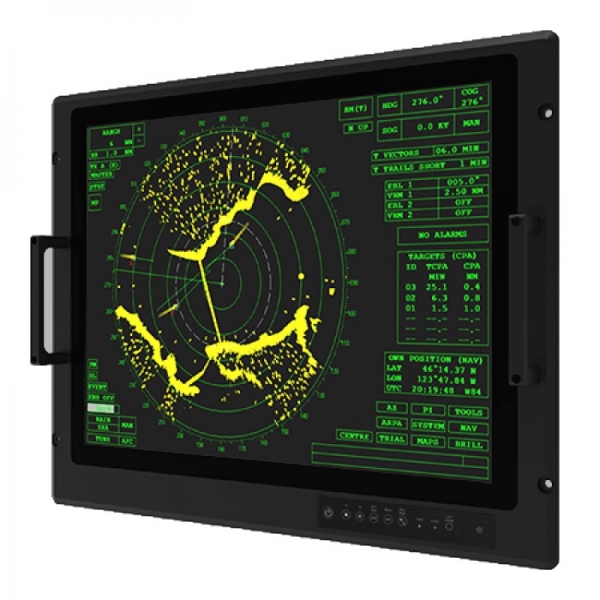

R21L100-MLM1FP
Winmate
SKU: 09303200
21.3" TFT LCD Industrial Display, 1600x1200, P-Cap Touch Screen, VGA+DVI+BNC Input, 12VDC-in, 100-240VAC Apapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
19" Rackmount, Wall VESA 100, VESA 200x100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
21.3 "
Maximum resolution
1600x1200 Dots
Brightness
1000 Cd/m2
Contrast Ratio
1800~1
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
KeyPad
Connectors
Connectors
DVI-D, DB15 VGA, DC Input, 5xBNCs (R,G,B,H,V), USB type B
System Power Input
Input Voltage DC
9..36 V
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
580 mm
Height
384 mm
Depth
71 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
10 kg
