R19L300-IPM2TR

R19L300-IPM2TR

Winmate
SKU: 57912500

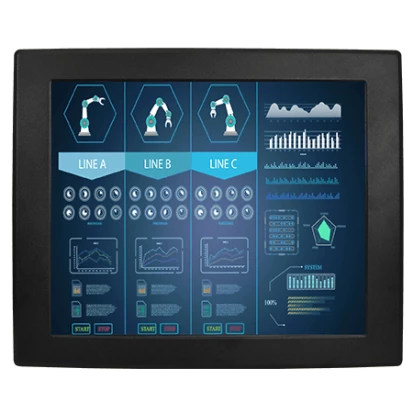

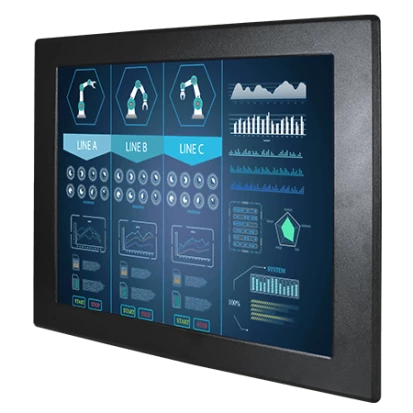

19" Industrial Panel Display, IP65 Front, 1280x1024 TFT LCD, 350cd/m2, Resistive Touch, Protection Glass Opt., 1xVGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
2000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
470 mm
Height
380 mm
Depth
63 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
4.2 kg
Gross Weight
4.9 kg
