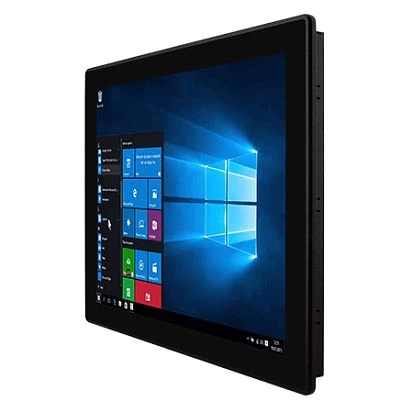

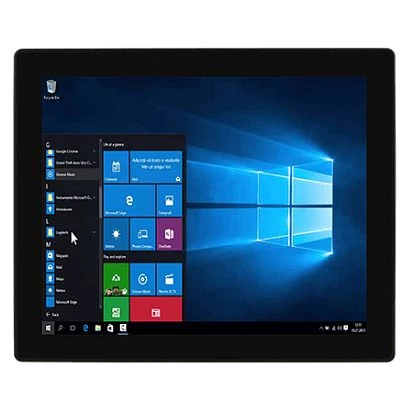

R19ITWS-MHA1
Winmate
SKU: 09410400
19" Fanless Panel PC, M Series, IP65 Front, 1280x1024, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, Up to 32GB DDR4 RAM, Up to 512GB NVME SSD, DP, 2xGbE LAN, 4xUSB 3.2, 2xCOM, 2x2.5" Bay, 1xM.2 Key-M, 1xM.2 Key-E, 1xmPCIe, 1xPCIe x16, 9-29VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Storage Cage
2.5" Cage External
2
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Extension Slots
Total
3
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..29 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
445.7 mm
Height
370.5 mm
Depth
93.8 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
10.4 kg
Gross Weight
12 kg
