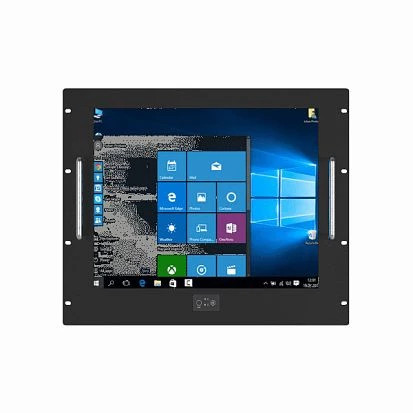

R19IT7T-RKM1
Winmate
SKU: 57634800
19" Rack Mount Fanless Panel PC, 1280x1024, 250 cd/m2, Intel 11th Gen Core i5-1135G7 2.4GHz CPU, 4GB DDR4 RAM, 128GB M.2 SSD, 1xDP, 2xCOM, 4xUSB 3.2, 2xGbE LAN, Audio, 1xM.2 2242/2280 Key-M, 1xM.2 2230 Key-E, TPM 2.0, 12VDC-in with PSU, 0..50C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Aspect Ratio
5:4
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
Extension Slots
Total
2
M.2
2
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
482 mm
Height
399 mm
Depth
80 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6.8 kg
Gross Weight
8 kg
