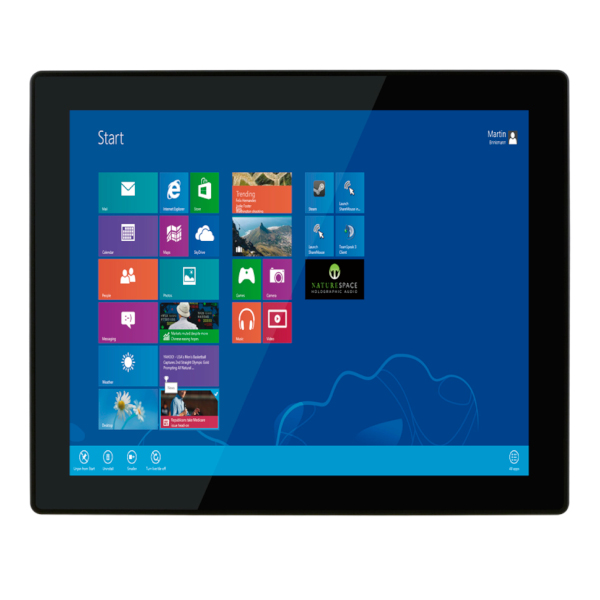

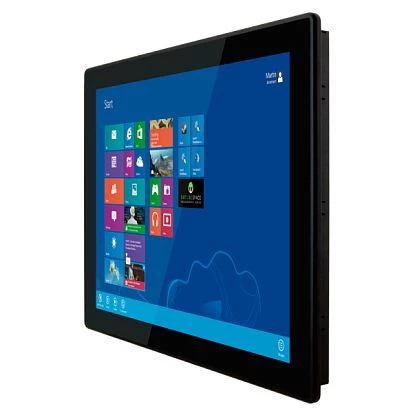

R19IBWS-MHA1

R19IBWS-MHA1

Winmate
SKU: 56437800
19" Fanless Panel PC, M Series, IP65 Front, 1280x1024, 400cd/m2, PCAP Touch, Intel Atom E3845 1.91GHz CPU, Up to 8GB DDR3L RAM, 128GB mSATA SSD, HDMI/VGA Opt., 2xGbE LAN, 4xUSB 2.0, 1xCOM, Audio, 1x2.5" Bay, 1xmPCIe Half-Size, 12-24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Chassis
IP20
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
4
System Power Input
Input Voltage DC
12..24 V
Dimensions and weight
Width
445.7 mm
Height
370.4 mm
Depth
79.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
8 kg
Gross Weight
9 kg
