R15RK3S-PCC3-POE

R15RK3S-PCC3-POE

Winmate
SKU: 56771600

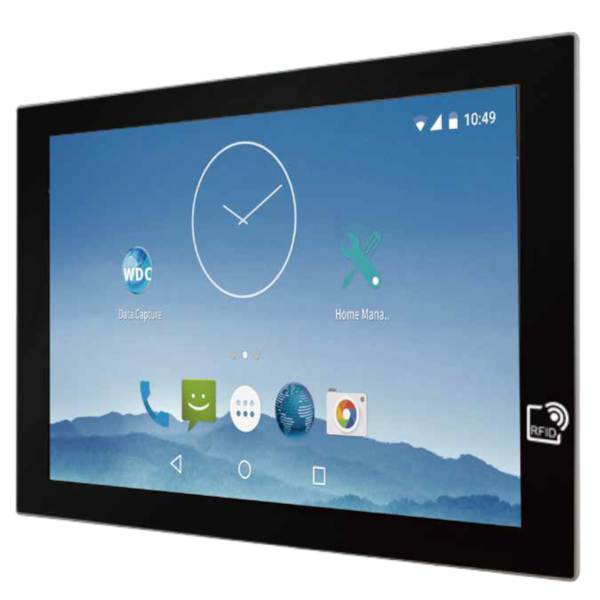

Fanless Panel Computer 15" TFT LCD, 1024 x 768, P-CAP Multi-Touch, ARM Cortex A72+A53 up to 2GHz, 2GB LPDDR3, 16GB eMMC, Micro SD, Micro HDMI, 2xUSB 3.0, 1xUSB OTG, 1x 1000Mbps RJ45 (Support PoE IEEE 802.3at), 1xCOM, 12VDC-in, Android 7.1
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 100
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
250 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
CPU Support Type
ARM Cortex
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Maximum Memory
4 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB v3.x
2
Drive interfaces
MicroSD
1
Connectors
Connectors
DB9, RJ45 Ethernet, 3xUSB, DC Input, SD card slot, Micro HDMI
System Power Input
Input Voltage DC
12..12 V
Power Consumption
19 W
Software
Operating System Installed
Android
Dimensions and weight
Width
277.86 mm
Height
363.4 mm
Depth
44.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
