R15L100-MRC3HB

R15L100-MRC3HB

Winmate
SKU: 56430200

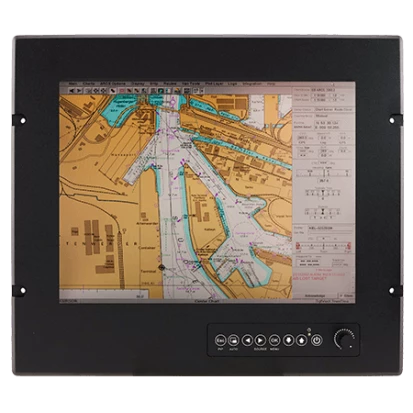

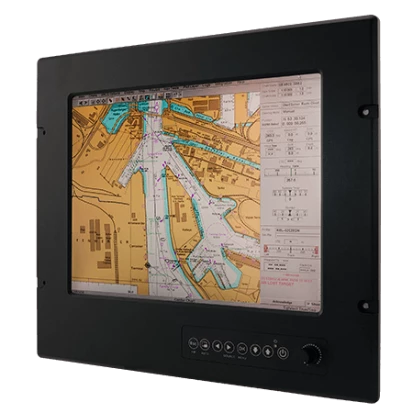

15" High Brightness TFT LCD Marine Bridge System Display, IP65 Front Panel, 1024x768, 1000 cd/m2, VGA, DVI, Video input, isolated 9..36V DC-In, AR Glass
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP54
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
1000 Cd/m2
Contrast Ratio
700~1
Input Interface
S-Video, VGA, Composite Video, DVI
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
DB9, DVI, DB15 VGA, DC input (terminal block), S-Video, RCA
System Power Input
Input Voltage DC
9..36 V
Power Consumption
40 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-15..95 °C
Humidity
5-95%
Vibration
0.7g@DNVGL CG­0339 (Class A)
Shock
15G,11ms duration
Dimensions and weight
Width
412 mm
Height
345 mm
Depth
79 mm
Standards and Certifications
Certifications
CE, FCC
Marine grade
DNV, IACS-E10, IEC 60945 4th
Dimensions
Gross Weight
5.5 kg
