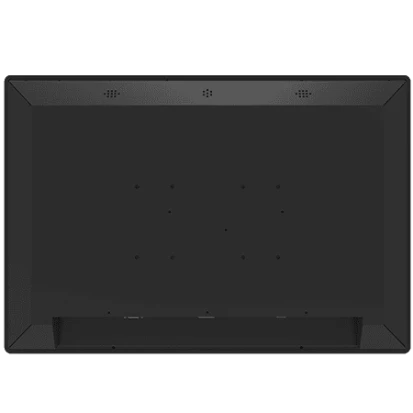

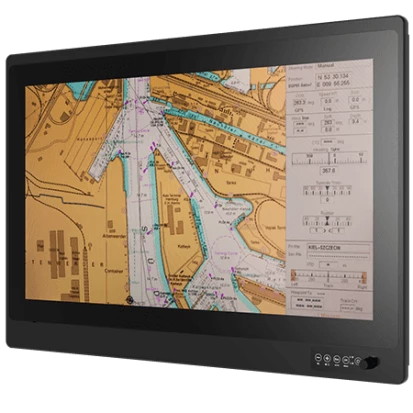

W24L100-MRL1FP
Winmate
SKU: 57904200
24" Marine 4K Panel Display, IP66 Front, 3840x2160, 540cd/m2, VGA, DVI-D, 2xHDMI, DP, 1xUSB, 1xCOM, 9-36VDC-in w/ PSU, -15..55C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
3840x2160 Dots
Aspect Ratio
16:9
Brightness
540 Cd/m2
Contrast Ratio
1200~1
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
DB9, DVI-D, DB15 VGA, 2xHDMI, 1xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
70 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Vibration
0.7g@DNVGL CG-0339 (Class A)
Shock
15G,11ms duration
Dimensions and weight
Width
601 mm
Height
415 mm
Depth
73.8 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
10.5 kg
Gross Weight
11.8 kg
