W32L100-MRA3FP
Winmate
SKU: 57904400

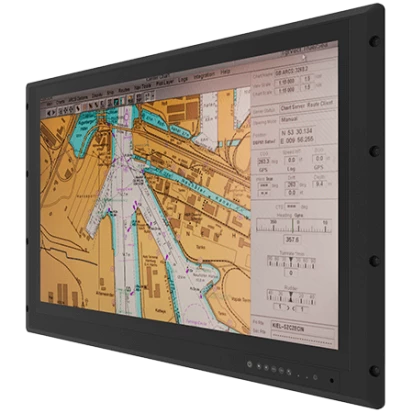

32" Marine Panel Display, IP65 Front, 1920x1080, 400cd/m2, PCAP Touch, VGA, DVI-D, HDMI, 1xUSB for touch, 1xCOM, 9-36VDC-in, IEC 60945 4th, IACS-E10, DNV-CG-0339, (Optional Color calibrated for ECDIS compliance)
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, VESA 200
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
32 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Contrast Ratio
4000~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, DVI-D, DB15 VGA, HDMI, 1xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
55 W
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
10-95%
Dimensions and weight
Width
795 mm
Height
524 mm
Depth
75.5 mm
Standards and Certifications
Certifications
CE/FCC
Marine grade
DNV, IACS-E10, IEC 60945 4th
Dimensions
Net Weight
18 kg
Gross Weight
18.7 kg
