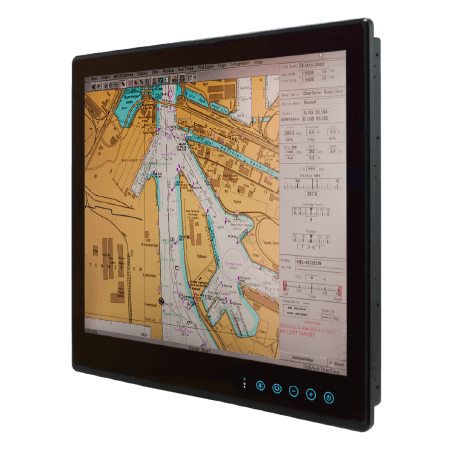

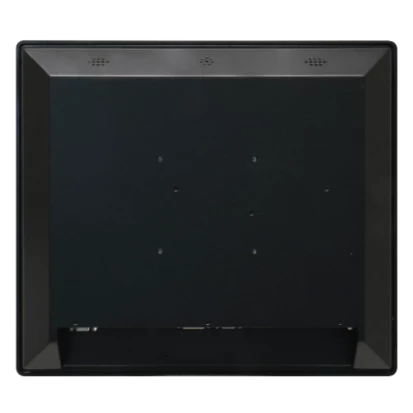

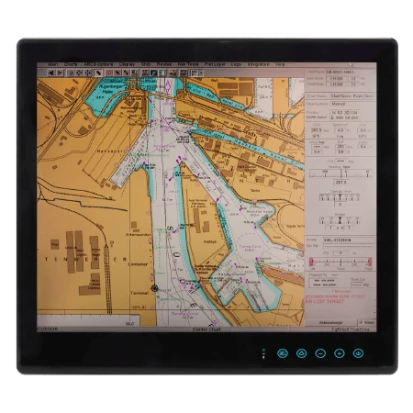

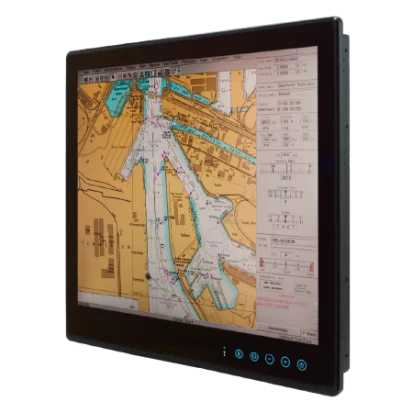

R19L300-MRA1FP
Winmate
SKU: 06816100
19" Marine Display, 1280x1024, 400cd/m2, PCAP Touch, HDMI, DVI-D, VGA, 1xUSB for touch, 1xCOM, 9-36VDC-in, IEC 60945 4th, IACS-E10, DNV-CG-0339, (Optional Color calibrated for ECDIS compliance)
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, DVI-D, DB15 VGA, HDMI, 1xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
45 W
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Dimensions and weight
Width
429 mm
Height
382 mm
Depth
72.8 mm
Standards and Certifications
Certifications
CE/FCC
Marine grade
DNV, IACS-E10, IEC 60945 4th
Dimensions
Net Weight
9.8 kg
Gross Weight
11.5 kg
