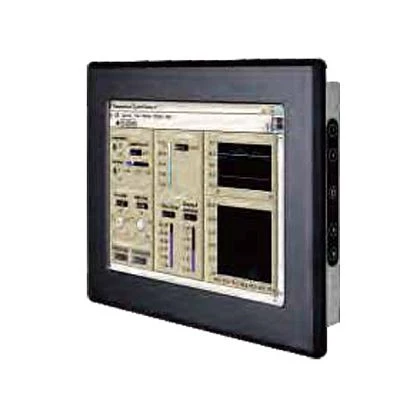

R15L100-IPA1

R15L100-IPA1

Winmate
SKU: 56774800
15" Industrial Panel Display, IP65 Front, 1024x768 TFT LCD, 350cd/m2, Resistive Touch, Protection Glass Opt., 1xVGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
400 mm
Height
320 mm
Depth
56.8 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
3.5 kg
Gross Weight
4.2 kg
