R15IT7T-IPC3

R15IT7T-IPC3

Winmate
SKU: 57628900

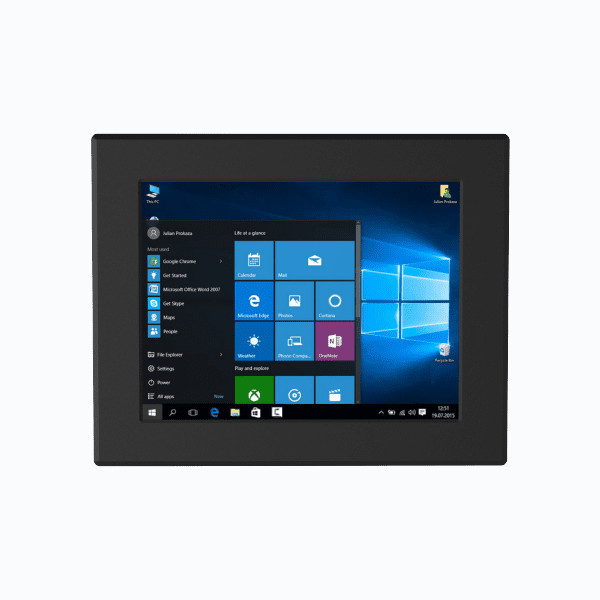

15" Fanless Panel PC, IP65 Front, 1024x768, 300 cd/m2, Intel 11th Gen Core i5-1135G7 2.4GHz CPU, 4GB DDR4 RAM, 128GB NVM SSD, 1xDP, 2xCOM, 4xUSB 3.2, 2xGbE LAN, Audio, 1xM.2 Key-E, 1xPCIe x16 (x4 signal), TPM 2.0, 12VDC-in w/ Power Adapter
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
Extension Slots
Total
2
M.2
2
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
400 mm
Height
320 mm
Depth
70 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6 kg
Gross Weight
7 kg
