R15IK3S-SPC3

R15IK3S-SPC3

Winmate
SKU: 08601300

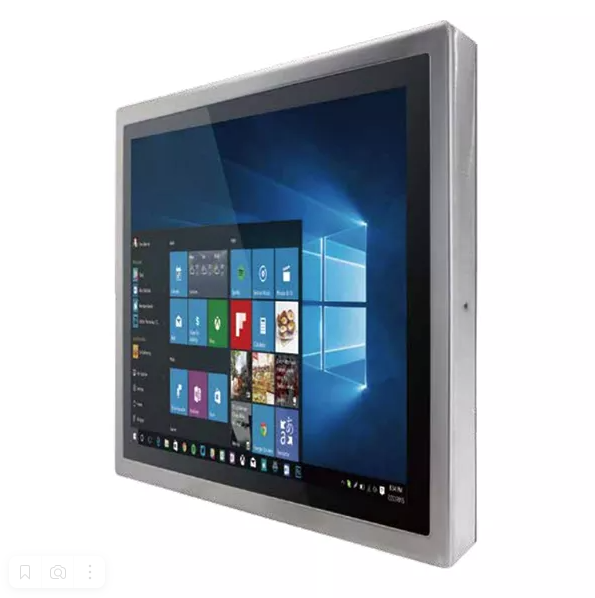

Fanless Panel Computer 15" TFT LCD, PCap Touch Screen, Intel Core i5-7200U 2.5GHz, 4GB DDR4, 64GB SSD, 2xUSB 3.0, 2xGbit LAN, 1xRS-232, 12 VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP69K
Protection Level of Chassis
IP69K
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Aspect Ratio
4:3
Brightness
250 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Socket
CPU onboard
Max CPU frequency
3.1 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC886
Drive interfaces
SATA 3
1
mSATA
0
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
128 GB
LED / Controls
LED
1xOn/Off LED
Connectors
Connectors
M25 (2xUSB), M25 (COM), M25 (LAN), M25 (DC)
System Power Input
Power Consumption
38 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
378 mm
Height
301 mm
Depth
56.4 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP69K
Protection Level of Chassis
IP69K
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Aspect Ratio
4:3
Brightness
250 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Socket
CPU onboard
Max CPU frequency
3.1 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC886
Drive interfaces
SATA 3
1
mSATA
0
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
128 GB
LED / Controls
LED
1xOn/Off LED
Connectors
Connectors
M25 (2xUSB), M25 (COM), M25 (LAN), M25 (DC)
System Power Input
Power Consumption
38 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
378 mm
Height
301 mm
Depth
56.4 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP69K
Protection Level of Chassis
IP69K
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Aspect Ratio
4:3
Brightness
250 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Socket
CPU onboard
Max CPU frequency
3.1 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC886
Drive interfaces
SATA 3
1
mSATA
0
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
128 GB
LED / Controls
LED
1xOn/Off LED
Connectors
Connectors
M25 (2xUSB), M25 (COM), M25 (LAN), M25 (DC)
System Power Input
Power Consumption
38 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
378 mm
Height
301 mm
Depth
56.4 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP69K
Protection Level of Chassis
IP69K
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Aspect Ratio
4:3
Brightness
250 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Socket
CPU onboard
Max CPU frequency
3.1 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC886
Drive interfaces
SATA 3
1
mSATA
0
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
128 GB
LED / Controls
LED
1xOn/Off LED
Connectors
Connectors
M25 (2xUSB), M25 (COM), M25 (LAN), M25 (DC)
System Power Input
Power Consumption
38 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
378 mm
Height
301 mm
Depth
56.4 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
6 kg

Get a Quote

Winmate
SKU: 08601300
R15IK3S-SPC3
R15IK3S-SPC3
