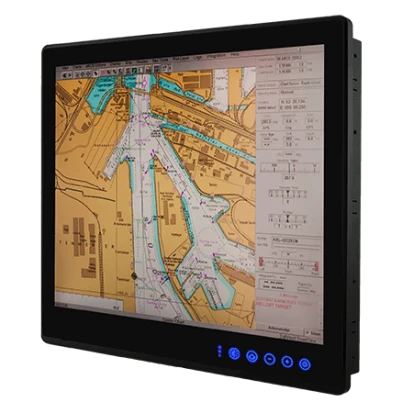

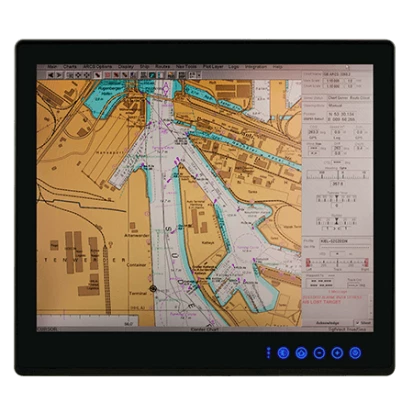

R15IH3S-MRA3FP
Winmate
SKU: 56637300
15" Fanless Marin ECDIS Panel PC, IP66 Front, DNV/IACS Certified, 1024x768, 500 cd/m2, AR Coating, PCAP Touch, Intel Core i5-5250U CPU, 4GB DDR3L RAM, 128GB mSATA SSD, HDMI Opt., 2xGbE LAN, 2xUSB 3.2, 1xCOM, 4xNEMA Opt., DIO Opt., 9-36VDC-in with PSU
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
2500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Broadwell
Processor Installed
Intel Core i5-5350U
Socket
FCBGA1168
Max CPU frequency
2.9 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i218-LM 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
363 mm
Height
312 mm
Depth
67.5 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Marine grade
DNV, IACS-E10, IEC 60945 4th
Dimensions
Net Weight
5.8 kg
Gross Weight
6.6 kg
