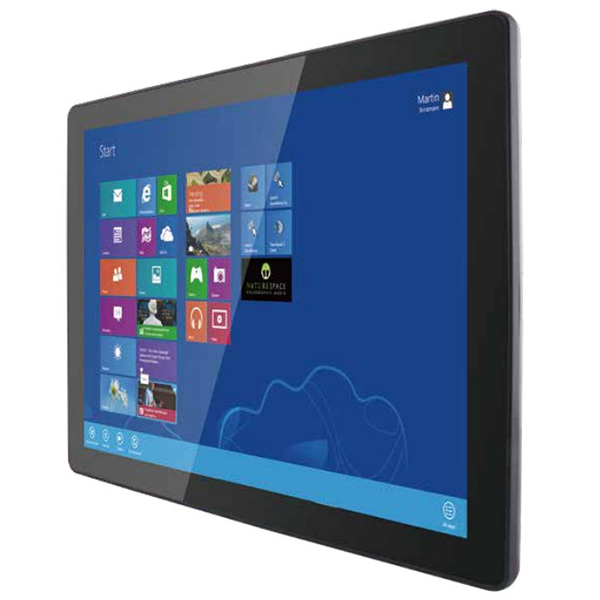

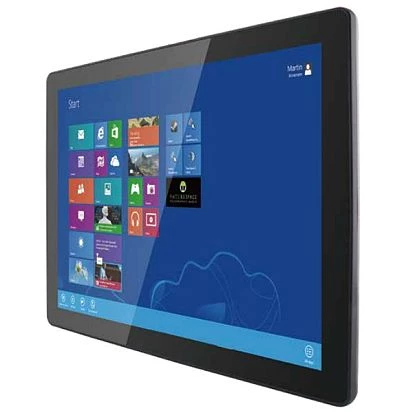

R15IB3S-PTC3

R15IB3S-PTC3

Winmate
SKU: 07729100
Fanless Panel Computer 15" TFT LCD, 1024x768, projected capacitive touch, Intel Celeron N2930 1.83Ghz, 4GB DDR3, SSD 128GB, 1xRS-232/422/485, 1xUSB 3.0, 1xUSB 2.0, 1xGbE LAN, 1xGbE LAN PoE, power 12V DC
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
21 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standart 8.1, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
352.5 mm
Height
276.7 mm
Depth
45 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
2.18 g rms for XYZ/ 5-500Hz
Shock
30g for 18ms
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
