R12T600-PML1
Winmate
SKU: 57912400

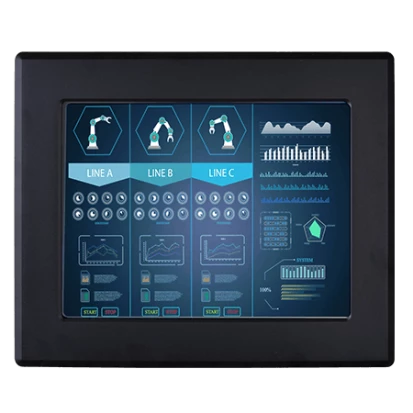

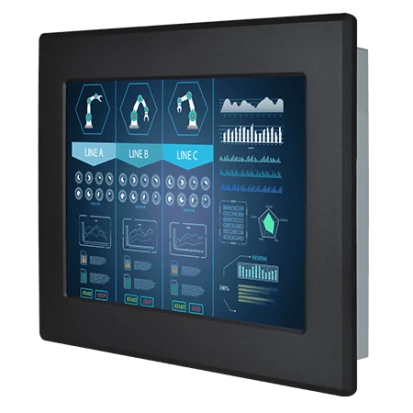

12.1" Industrial Panel Display, 800x600 TFT LCD, 450cd/m2, Resistive Touch, Protection Glass Opt., 1xVGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
800x600 Dots
Brightness
450 Cd/m2
Contrast Ratio
700~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
324 mm
Height
274 mm
Depth
43 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.3 kg
Gross Weight
2.7 kg
