R12L600-MRM2
Winmate
SKU: 03853600

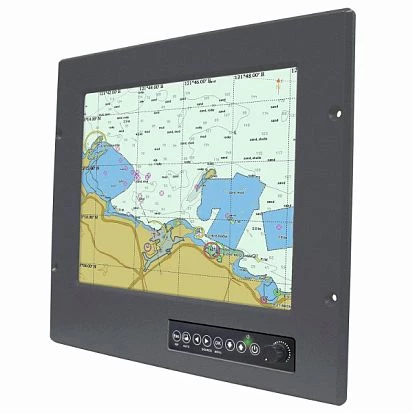

12.1" Marine Panel Display, IP66 Front, IP54 Rear, 1024x768, 500cd/m2, Resistive Touch, VGA, DVI-D, S-Video, Composite, 2xCOM, 9-36VDC-in w/ PSU, -15..55C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Input Interface
S-Video, VGA, Composite Video, DVI
Touch Screen
Touch Screen Type
Resistive
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
2xDB9, DVI, DB15 VGA, DC input (terminal block), S-Video, RCA Video
System Power Input
Input Voltage DC
9..36 V
Power Consumption
35 W
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Dimensions and weight
Width
337 mm
Height
293.2 mm
Depth
70.8 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4 kg
Gross Weight
4.7 kg
