R12IT3S-MRM2

R12IT3S-MRM2

Winmate
SKU: 10753700

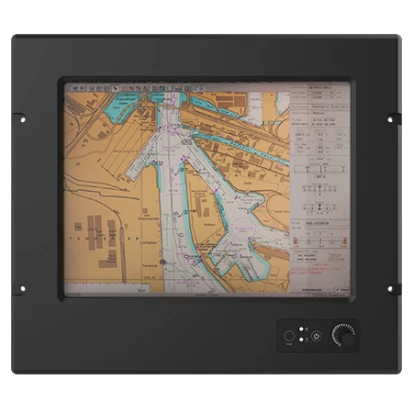

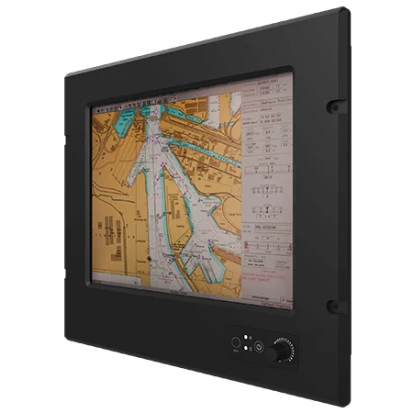

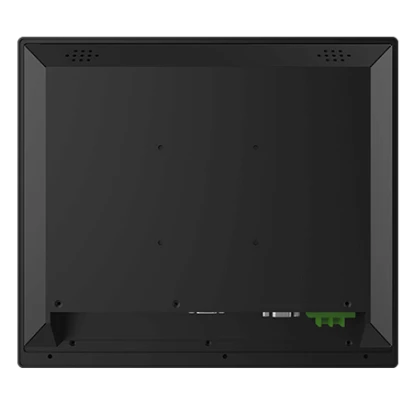

12.1" Marine Panel PC, IP66 Front, 1024x768, 500cd/m2 (Adjustment Knob), Resistive Touch, Intel 11th Gen Core i5-1135G7 4.2GHz CPU, 8GB DDR4 RAM, 128GB NVME SSD, HDMI Opt., 2x2.5GbE LAN, 2xUSB 3.0, 3xCOM, 9-36VDC-in with 84W Power Adapter, w/o OS
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i7-1165G7
Socket
FCBGA 1449
Max CPU frequency
4.7 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
3
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
3xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
55 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11
Operating System Installed
Windows 11
Dimensions and weight
Width
336 mm
Height
293.2 mm
Depth
50 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4.5 kg
Gross Weight
5.3 kg
Construction
