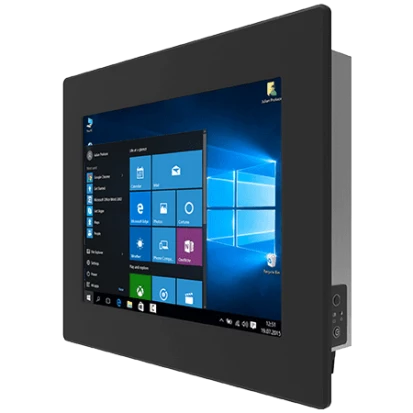

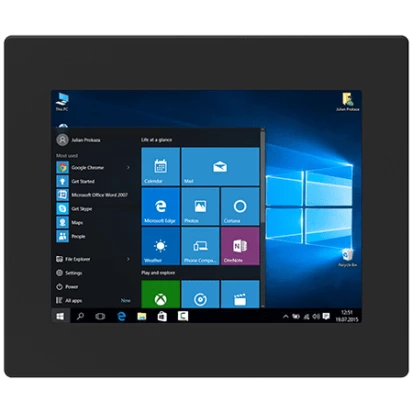

R12IAD3S-IPM2
Winmate
SKU: 57929700
12.1" Industrial Fanless Panel PC, IP65 Front, 1024x768, 500cd/m2, Res. Touch Opt., Intel Core i5-1235U CPU, 8GB DDR5 RAM, 128GB NVME SSD, HDMI Opt., 2x2.5GbE LAN, 2xUSB 3.2, 2xCOM, 1xSATA 3, Audio, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
CPU onboard
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED, SSD LED
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
324 mm
Height
274 mm
Depth
67 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.6 kg
Gross Weight
3.1 kg
