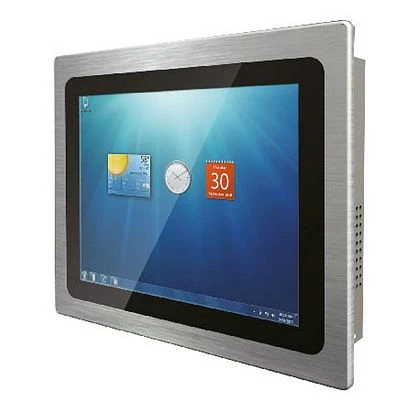

R10L100-PPT2
Winmate
SKU: 07370300
Industrial Monitor 10.4" LCD LED, 1024x768, 350 nits, projected capacitive touch, VGA+HDMI, power adapter AC DC 100-240V, IP65 front
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1200~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
10 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Dimensions and weight
Width
284 mm
Height
252 mm
Depth
55 mm
Dimensions
Net Weight
4.2 kg
Gross Weight
4.2 kg
