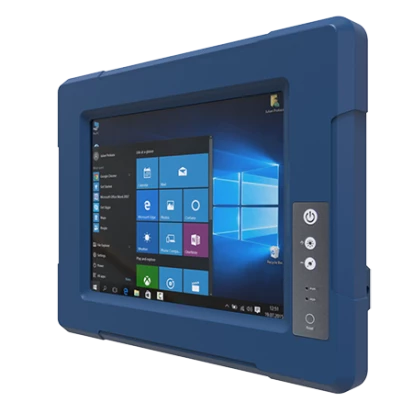

R10IAD3S-VMT2
Winmate
SKU: 57915200
10.4" Vehicle Panel PC, G-WIN VM Series, IP65 Front, 1024x768, 350cd/m2 (HB Opt.), Intel Core i5-1235U 4.4GHz CPU, 8GB DDR5 RAM, 128GB NVME SSD, HDMI Opt., 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xM.2 2230 Key-E, 1xM.2 2280 Key-M, 9-36VDC-in, -10..55C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75, Yoke mounting
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Elkhart Lake, Alder Lake
Processor Installed
Celeron N6211, Intel Core i5-1235U
Socket
CPU onboard
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
315 mm
Height
250 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Rolling Stock
EN 50155
Dimensions
Net Weight
2.9 kg
Gross Weight
3.3 kg
