QBiX-PPC-215A310HT-A1

QBiX-PPC-215A310HT-A1

GIGAIPC
SKU: 57827700

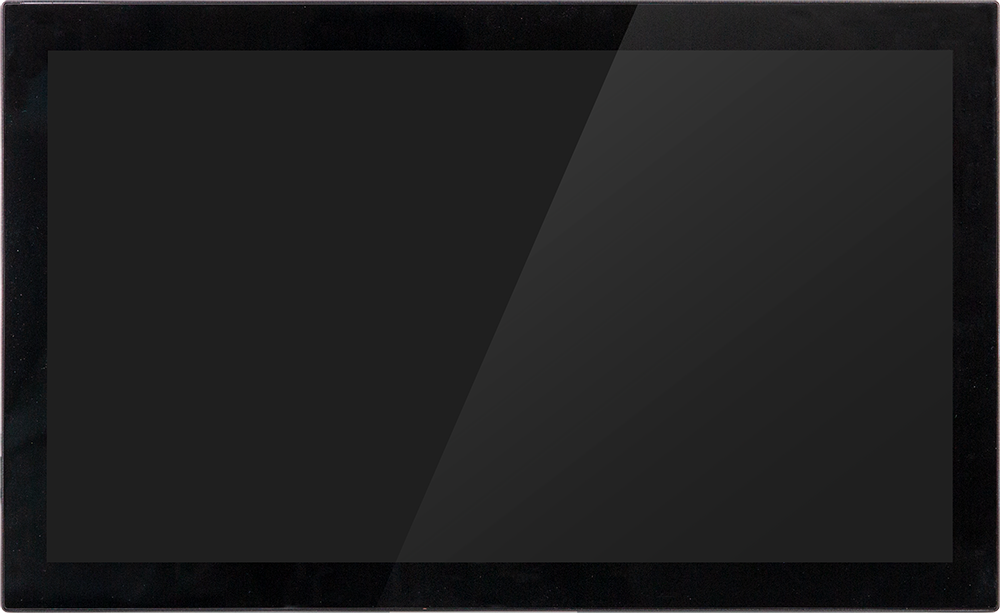

21.5 Fanless Panel PC, 1920x1080, 250cd/m2, PCAP Touch, Intel 9/8th Gen Core i3/i5/i7/Pentium/Celeron CPU, Up to 64GB DDR4 RAM, HDMI/DP/VGA, 2xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB, 1xMiniPCIe, 2xM.2, GPIO, SIM, Audio, 9-36VDC-in Terminal Block, 0..50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1980x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off

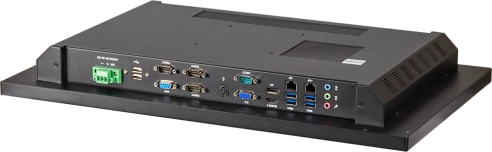

Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio (in/out/Mic), Display Port, DC input (terminal block), DB9 GPIO
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
524.8 mm
Height
320.8 mm
Depth
61.8 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
0-95%
Vibration
Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
6 kg
Gross Weight
6.8 kg
