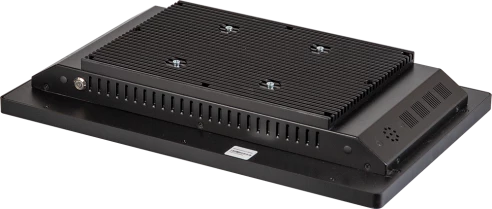

QBiX-PPC-156A8145T-A1

QBiX-PPC-156A8145T-A1

GIGAIPC
SKU: 57827600
15.6 Fanless Panel PC, 1920x1080, 450cd/m2, PCAP Touch, Intel Core i3-8145UE 2.2GHz CPU, Up to 64GB DDR4 RAM, 2xHDMI, 2xGbE LAN, 2xRS232/422/485, 4xUSB 3.2, 1xMiniPCIe, 1xM.2 2280, 1xM.2 2230, GPIO, SIM, Audio, 9-36VDC-in Terminal Block, 0..50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Type
Fanless

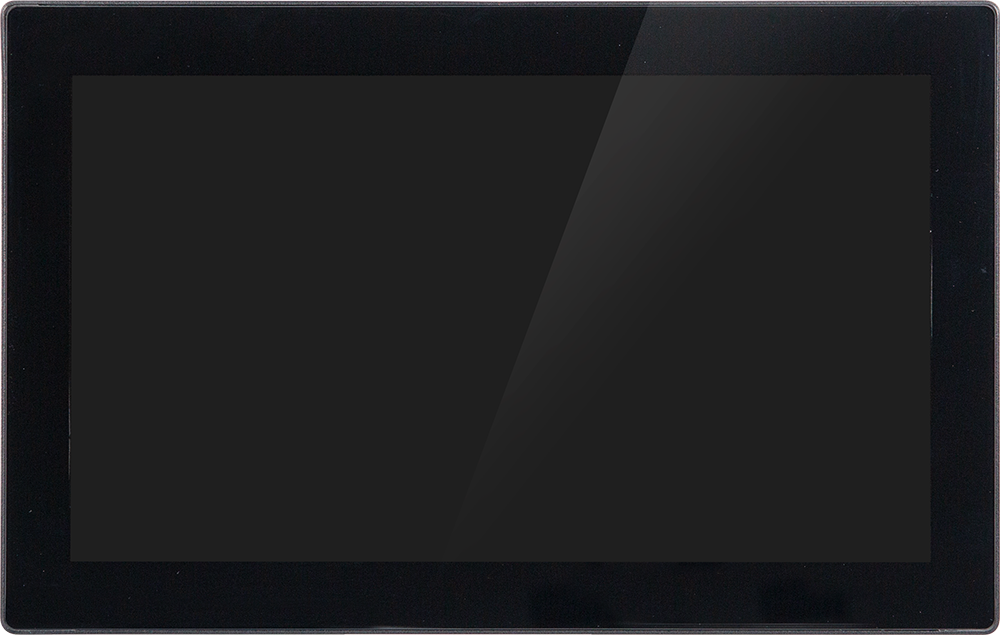

Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1980x1080 Dots
Aspect Ratio
16:9
Brightness
450 Cd/m2
Contrast Ratio
800~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Coffee Lake
Processor Installed
Intel Core i3-8145UE
Socket
FCBGA 1528
CPU Support Type
Core i3
Max CPU frequency
3.9 GHz
Chipset
Chipset
Intel Coffe Lake SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 620
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors

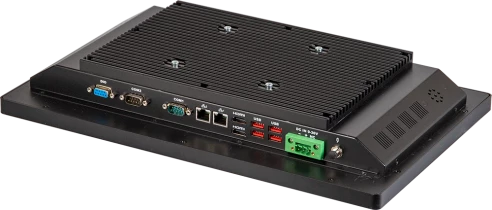

Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), DB9 GPIO
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
399.6 mm
Height
252.6 mm
Depth
56.8 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
0-95%
Vibration
Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.5 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Type
Fanless
Display
