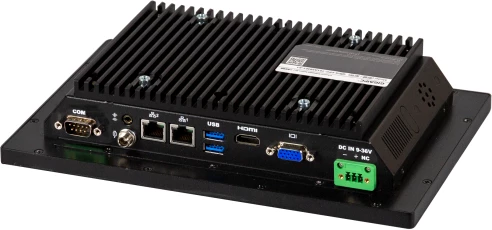

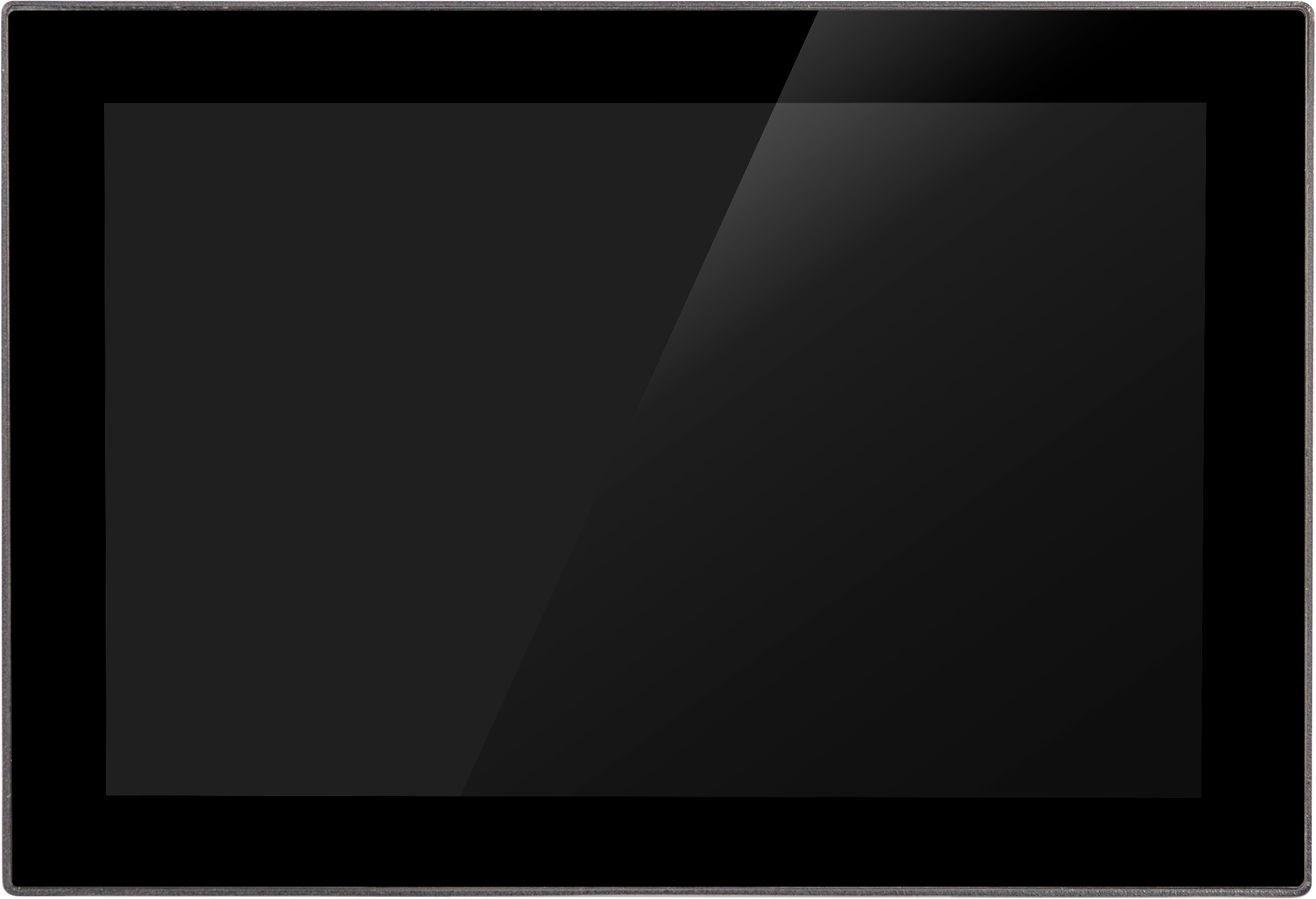

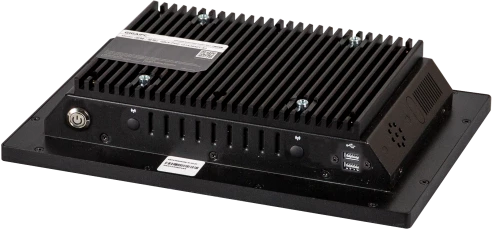

QBiX-PPC-101A3940T-A1

QBiX-PPC-101A3940T-A1

GIGAIPC
SKU: 57819200
10.1 Fanless Panel PC, 1280x800, 300cd/m2, PCAP Touch, Intel Atom x5-E3940 1.6GHz CPU, Up to 8GB DDR3L RAM, HDMI, VGA, 2xGbE LAN, 1xRS232/422/485, 2xUSB 3.2, 2xUSB 2.0, 1xMiniPCIe, 1xM.2 SATA, SIM, Audio, 12-36VDC-in Terminal Block, 0..60C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
300 Cd/m2
Contrast Ratio
1300~1
Input Interface
D-Sub
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x5-E3940
CPU Support Type
Atom
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 500
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G (Optional)
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), Jack 3.5
System Power Input
Input Voltage DC
12..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
285.3 mm
Height
176.3 mm
Depth
51.3 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Vibration
Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
