PPC2150-H410

PPC2150-H410

Technica
SKU: 57376400

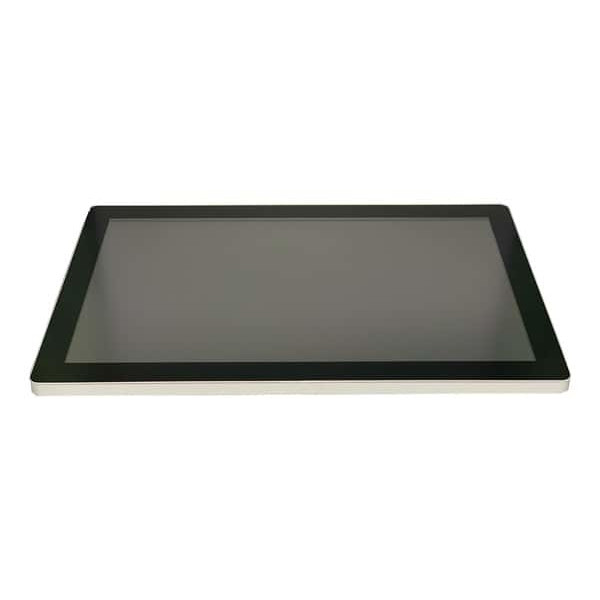

21.5" TFT LCD Fanless Panel PC, 1920x1080, IP67 Front, PCAP touch, Intel 10th i9/i7/i5/i3/Pentium/Celeron, Dual Channel DDR4 up to 32GB, 2 x SATAIII, 6xUSB, 2xLAN, 3xHDMI, 1xGPIO Header, Audio, 12/19..24 VDC-in
Price on request
Available
Available

Construction
Mounting Configuration
Wall VESA 100, Wall VESA 75
Type
Fan
Display
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Chipset
Chipset
Intel H410
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel Gen9 Graphic engine
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Extension Slots
Total
4
PCI Express x16
1
M.2
2
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, 6xUSB, DB15 GPIO, 3xHDMI
System Power Input
Input Voltage DC
19..24 V
Software
Operating System Compatibility
Windows 8, Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
537.8 mm
Height
61 mm
Depth
329.28 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
5.5 kg
Gross Weight
6 kg
