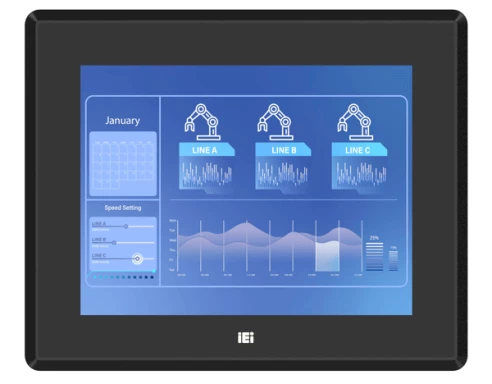

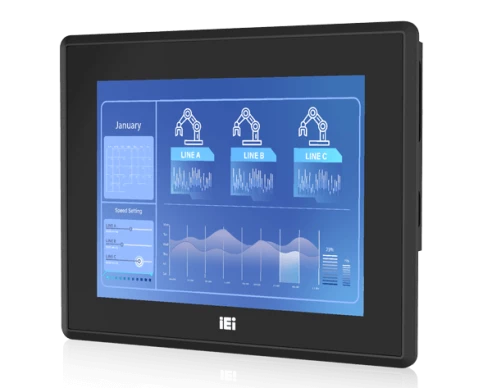

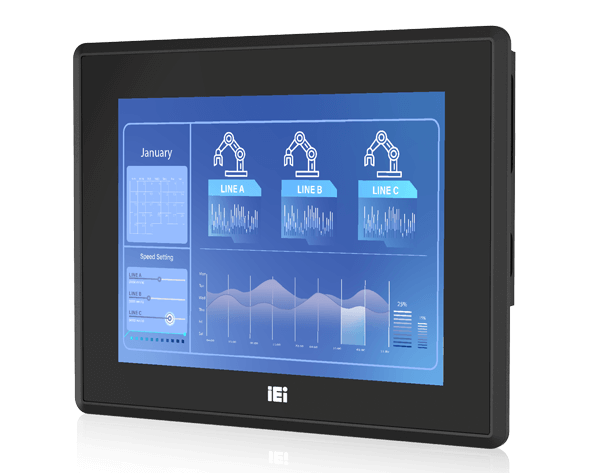

PPC2-C10-EHL-J1/8G
IEI
SKU: 09940100
10.4" Fanless Panel PC, 800x600, IP65 Front, PCAP Touch, Intel Celeron J6412 2.0GHz CPU, 8GB LPDDR4x RAM, HDMI, 2x2.5GbE LAN, 2xRS232, 1xRS232/422/485, 2xUSB 3.2, 2xUSB 2.0, 2xM.2 B-key, 1xM.2 M-key, 12-24VDC-in with 36W Power Adapter, -10..60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD
Diagonal
10.4 "
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Memory
Socket Type
Soldered
Default on Board Memory
8 GB
Assembly
Fixed on Board
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
4
USB 2.0
2
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
LED / Controls
Controls
On/Off, 1xReset, CMOS Reset
Connectors
Connectors

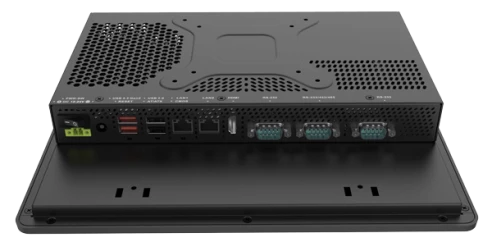

3xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
285.2 mm
Height
232.4 mm
Depth
49.9 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.36 kg
Gross Weight
2.9 kg
