PPC-Z157PW-B61A1
Arestech
SKU: 57017200

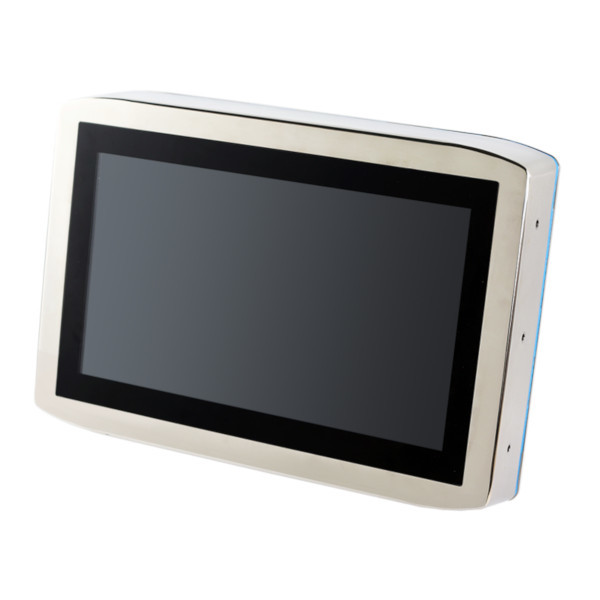

15.6" Fanless Panel PC, Stainless Steel 316 Full IP66/69K, 450 cd/m2, 1920 x 1080, PCAP Touch Screen, Intel Core i5-7200U 2.5 GHz CPU, 4GB RAM, 64GB SSD, 2x Gbit LAN, 2xUSB, 2xCOM, 9.36V DC-In(M12 Connector)
Price on request
Available
Available
Construction
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75, Yoke mounting
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Max CPU frequency
3.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xUSB, 2xM12
System Power Input
Input Voltage DC
9..36 V
Power Consumption
15 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
435 mm
Height
291 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Dimensions
Net Weight
7.41 kg
Gross Weight
11 kg
