PPC-Z153PW-B62A1

PPC-Z153PW-B62A1

Arestech
SKU: 57028600

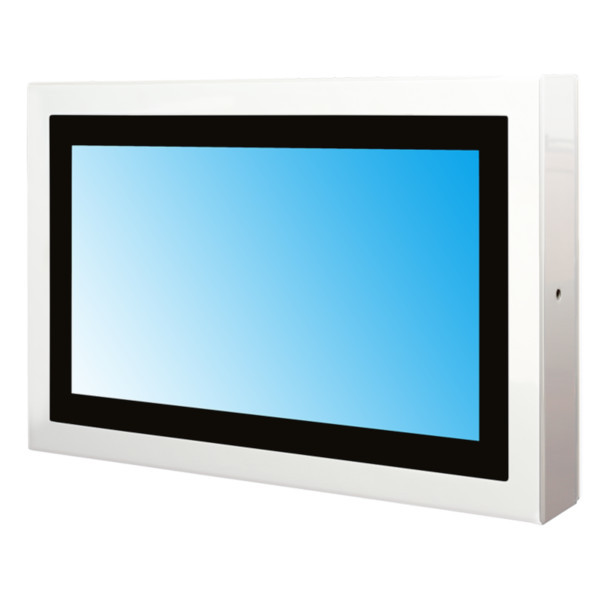

15.6" Fanless Panel PC, Stainless Steel 316 Full IP66/69K, 450 cd/m2, 1920 x 1080, PCAP Touch Screen, Intel Pentium N4200 1.1 GHz CPU, 4GB RAM, 64GB SSD, 2x Gbit LAN, 2xUSB, 2xCOM, 9.36V DC-In(M12 Connector)
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 2xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Consumption
14.46 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
435 mm
Height
293 mm
Depth
66.9 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Dimensions
Net Weight
7.42 kg
Gross Weight
11 kg
