PPC-Z153P-B6A1

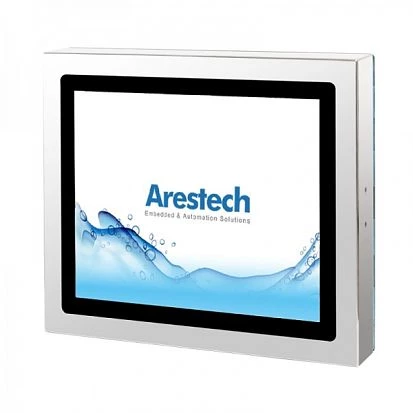

PPC-Z153P-B6A1

Arestech
SKU: 57276800
EOL** Last Stock** 1pc** 15" Fanless Panel PC, Stainless Steel 316 Full IP66/69K, 300 cd/m2, 1024 x 768, PCAP Touch Screen, Intel Pentium N4200 1.1 GHz CPU, 4GB RAM, 64GB SSD, 2x Gbit LAN, 4xUSB, 2xCOM, 9.36V DC-In(M12 Connector)
Price on request
Available
Available

Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75, Yoke mounting, VESA 200x100
Protection Level of Front Side (Panel)
IP66, IP69K
Protection Level of Chassis
IP66, IP69K
Type
Fanless
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
300 Cd/m2
Contrast Ratio
600~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Pentium N4200
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xM12
System Power Input
Input Voltage DC
9..36 V
Power Consumption
28.56 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
439 mm
Height
373 mm
Depth
66.9 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
7.42 kg
Gross Weight
11 kg
