PPC-Z103PW-B61A2

PPC-Z103PW-B61A2

Arestech
SKU: 57028900

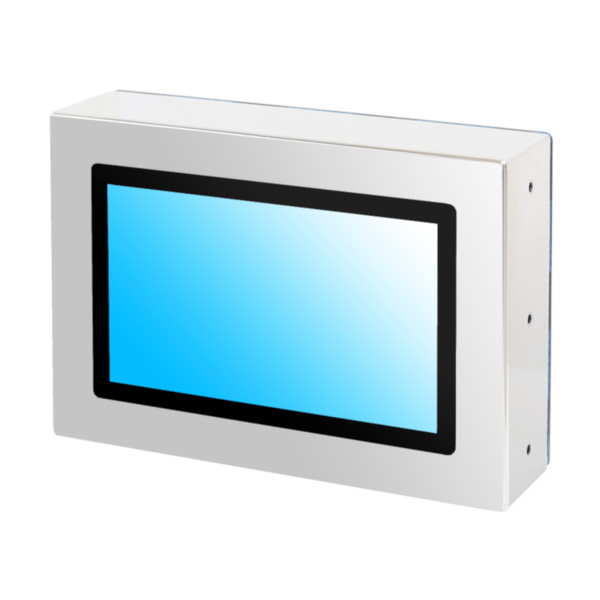

10.1" Fanless Panel PC, Stainless Steel 316 Full IP66/69K, 500 cd/m2, 1280 x 800, PCAP Touch Screen, Intel Pentium N4200 1.1 GHz CPU, 4GB RAM, 64GB SSD, VGA, 1x Gbit LAN, 2xUSB, 1xCOM, 9.36V DC-In(M12 Connector)
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
500 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
1
PCI
1
Connectors
Connectors
DB9, DB15 VGA, RJ45 Ethernet, 2xUSB, Line Out
System Power Input
Input Voltage DC
9..36 V
Power Consumption
21.6 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
310 mm
Height
210 mm
Depth
79.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Dimensions
Net Weight
3.15 kg
Gross Weight
5 kg
