PPC-Performance-21.5-Einbau--C
SKU: 80102400

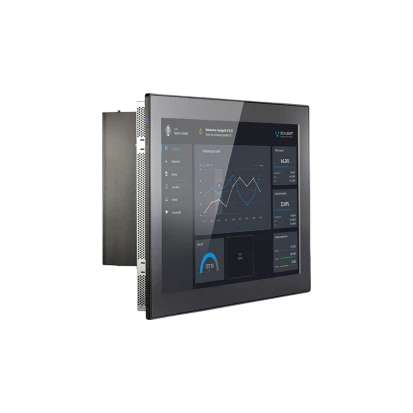

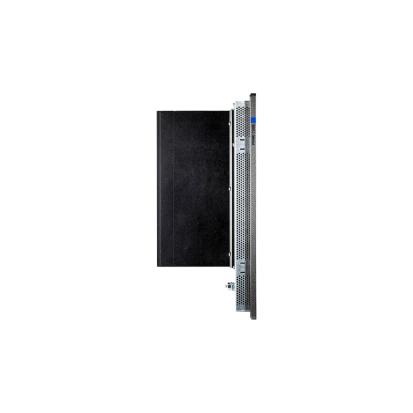

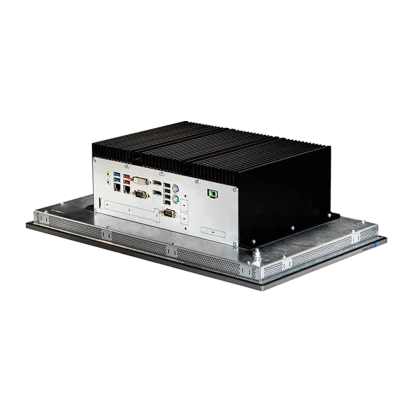

Prime Panel Performance 21.5" Einbau, IP65 Front, 1920x1080, 350cd/m2, PCAP Touch, Intel Celeron G4900T CPU, Up to 64GB DDR4 RAM, 2xDP, 1xDVI-D, 2xGbE LAN, 4xUSB 3.2, 4xUSB 2.0, 2xCOM, 1x2.5" Bay, 1xM.2 Key-M, CFast, MiniPCIe, 1xPCIe x16, 18-26VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP20
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Processor Installed
Intel Celeron G4900T
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
2.9 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232
1
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
PCI Express x16
1
M.2
1
M.2 Form Factor
2280 M
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, DVI-D, 2xRJ45 Ethernet, 8xUSB, Line In, Line Out, 2xDisplayPort, DC input (terminal block), 2xPS/2 Keyboard/Mouse
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Debian 10, Prime OS
Dimensions and weight
Width
538.6 mm
Height
330.1 mm
Depth
128 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
20-85%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4
Safety
CSA, UL 61010-2-201
Vandal Resistance
EN 62262, IK08 level
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
