PPC-N197P-1A1

PPC-N197P-1A1

Arestech
SKU: 57016100

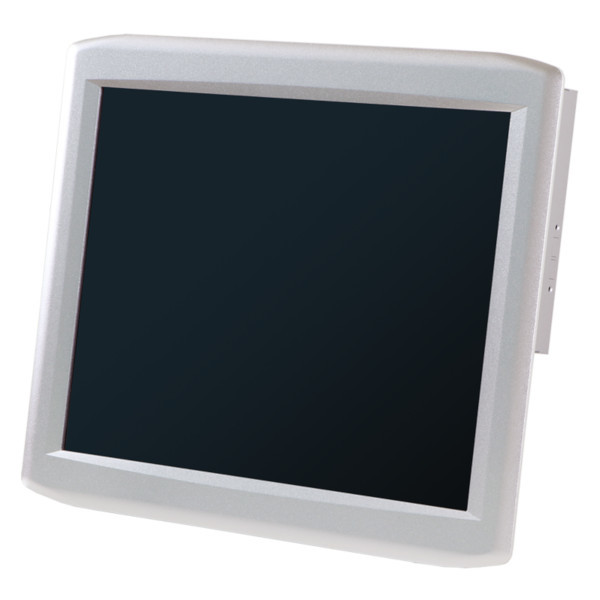

19" TFT LCD Fanless Panel PC, 1280x1024, 350 cd/m2, IP66 Front, PCAP touch, Intel Core i5-7200U 2.5GHz, max 32 GB DDR4, 2xSata Bay, 4xUSB, 2xLAN, DP/HDMI, 4xCOM, 1xMini-PCIe with SIM, 8 DIO, Line-Out, Mic-In, 9-36 VDC-in
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Max CPU frequency
3.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 4xUSB
System Power Input
Input Voltage DC
9..36 V
Power Consumption
16.5 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
456 mm
Height
393 mm
Depth
69 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.6 kg
Gross Weight
9.5 kg
