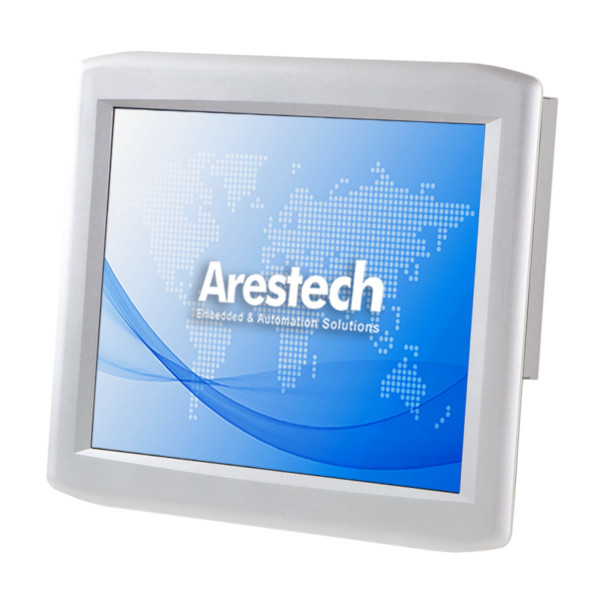

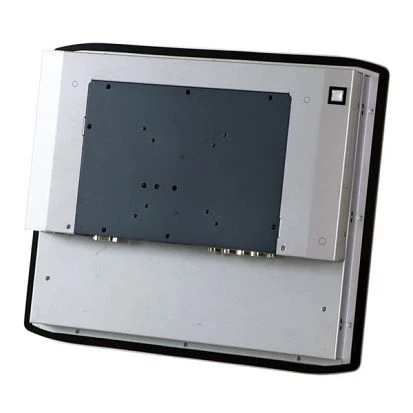

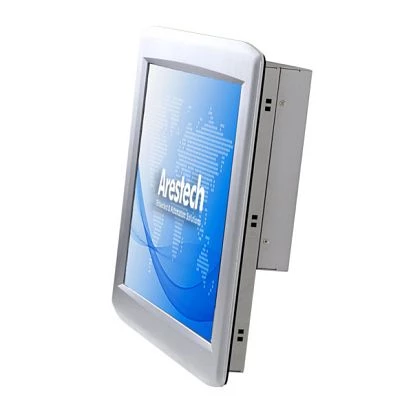

PPC-N177R-1A1

PPC-N177R-1A1

Arestech
SKU: 56966400
17" TFT LCD Fanless Panel PC P-cap 1X Series, 1280x1024, 350 cd/m2, IP65 Front, Resistive touch, Intel Core i5-7200U 2.5GHz , up to 32GB DDR4, 4xUSB, 2xLAN, DP, HDMI, 4xCOM, 1xMini-PCIe, 8 DIO, Line-Out, Mic-In, 9-36 VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Max CPU frequency
3.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
9..36 V
Power Consumption
16.5 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
426 mm
Height
361 mm
Depth
74 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Dimensions
Net Weight
4.86 kg
Gross Weight
8.7 kg
