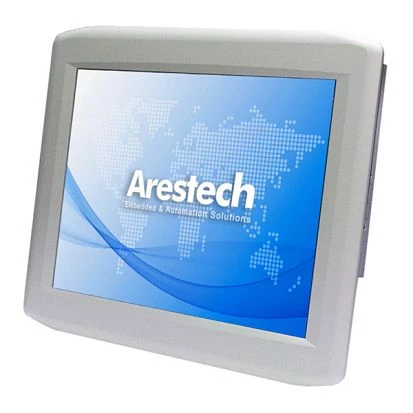

PPC-N158P-1A1
Arestech
SKU: 57033100
15" Fanless Panel PC, Aluminum IP66 front panel, 350 cd/m2, 1280 x 1024, PCAP Touch Screen, Intel Core i5-8265 1.6 GHz CPU, Up to 32GB DDR4, 2.5" SATA Bay, 2xHDMI, 2x Gbit LAN, 4xUSB, 4xCOM, 8-bit DI/DO, 9.36V DC-In
Price on request
Available
Available
PPC-N158P-1A1 Fanless Panel PC with Intel Core i5-8265IU, up to 32GB DDR4 RAM, 2.5'' Drive Bay, M.2, Mini Card, 2x LAN With an Intel Core i5-8265U CPU and DDR4 RAM on two memory banks, the PPC-N158P-1A1 has an exceptionally high performance for a 15'' Industrial Panel PC, which it can use for various computational and data-intensive tasks due to the versatile equipment of interfaces. With the Intel Core i5-8265U, the fanless Panel PC PPC-N158P-1A1 uses a powerful processor from the 8th generation Whiskey Lake segment for mobile and embedded applications, which includes four computing cores with a base clock of 1.60GHz and increases this to 3.90GHz in Turbo Boost Mode for rapid handling of performance peaks. Storage solutions include a 32GB DDR4 RAM for the main memory and a 2.5'' drive bay as well as an optional SSD via an M.2 slot. In addition, the Panel PC PPC-N158P-1A1 provides a slot for Mini Card as internal interface and quad Serial COM, four USB 3.1 interfaces, dual LAN with Gigabit Ethernet as well as two HDMI as native I/O. The display is a capacitive touch screen with a resolution of 1024 x 768 pixels and recognition for multi-touches as well as gesture recognition controlled by the software. The PPC-N158P-1A1 Industrial Fanless Panel PC is a suitable candidate for technical monitoring and SCADA or H2M terminals in Industry 4.0, but its IP66 sealing also makes it suitable for other industries such as healthcare and food processing as well.
PPC-N158P-1A1 Fanless Panel PC with Intel Core i5-8265IU, up to 32GB DDR4 RAM, 2.5'' Drive Bay, M.2, Mini Card, 2x LAN With an Intel Core i5-8265U CPU and DDR4 RAM on two memory banks, the PPC-N158P-1A1 has an exceptionally high performance for a 15'' Industrial Panel PC, which it can use for various computational and data-intensive tasks due to the versatile equipment of interfaces. With the Intel Core i5-8265U, the fanless Panel PC PPC-N158P-1A1 uses a powerful processor from the 8th generation Whiskey Lake segment for mobile and embedded applications, which includes four computing cores with a base clock of 1.60GHz and increases this to 3.90GHz in Turbo Boost Mode for rapid handling of performance peaks. Storage solutions include a 32GB DDR4 RAM for the main memory and a 2.5'' drive bay as well as an optional SSD via an M.2 slot. In addition, the Panel PC PPC-N158P-1A1 provides a slot for Mini Card as internal interface and quad Serial COM, four USB 3.1 interfaces, dual LAN with Gigabit Ethernet as well as two HDMI as native I/O. The display is a capacitive touch screen with a resolution of 1024 x 768 pixels and recognition for multi-touches as well as gesture recognition controlled by the software. The PPC-N158P-1A1 Industrial Fanless Panel PC is a suitable candidate for technical monitoring and SCADA or H2M terminals in Industry 4.0, but its IP66 sealing also makes it suitable for other industries such as healthcare and food processing as well.
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Contrast Ratio
600~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8265U
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Consumption
14.68 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
386 mm
Height
316 mm
Depth
69 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Dimensions
Net Weight
6.6 kg
Gross Weight
7.24 kg
