PPC-J217RW-1A1

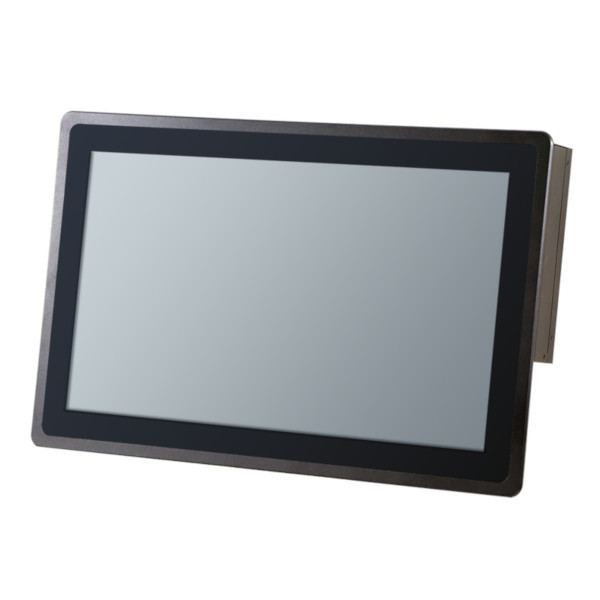

PPC-J217RW-1A1 21.5'' Panel PC with Intel Core i5-7200U, up to 32 GB DDR4 RAM, 8 Bit GPIO, 4x COM, 4x USB, Dual LAN The features of the PPC-J217RW-1A1 Panel PC include a resistive 21.5'' Full HD touch screen, a powerful 7th generation Intel Core i5-7200U CPU from the Kaby Lake series, and a wide range of external interfaces and internal expansion slots that ensure high flexibility in different environments. The Intel Core i5-7200U used in the PPC-J217RW-1A1 is a powerful dual core processor with a clock speed of up to 3.10 GHz over four threads, which comes from the mobile processor segment optimized for efficient performance. Alternatively, there is also a variant based on the Intel Core i3-7200U from the same generation. The main memory consists of a DDR4 RAM expandable up to 32 GB on two SODIMM memory banks with dual channel support. The Panel PC also supports both SSD and HDD in a 2.5'' Drive Bay as well as SSDs in a M.2 B/M Key 2280 Expansion Slot and allows both drives to be used in parallel for an optimal balance of speed and storage capacity. Interfaces for external peripherals and network connectivity include an 8 pin DIO, four serial COM ports, four USB 3.0 and 10/100/1000 Mbps Dual LAN ports. Applications for the PPC-J217RW-1A1 Panel PC include high-performance, semi-autonomous HMI and SCADA solutions in Industry 4.0 and customer or service terminals or point-of-sales (POS) in retail and wholesale.
