PPC-J213RW-1A1

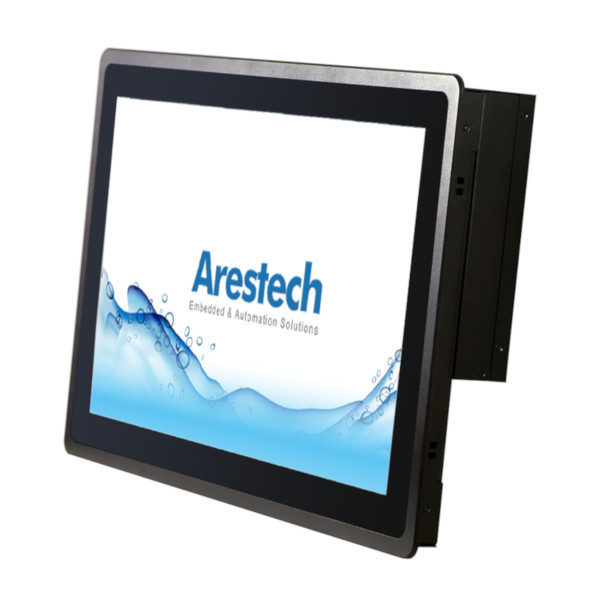

PPC-J213RW-1A1 21.5'' resistive panel PC with Intel Pentium N4200, max. 8 GB DDR3L RAM, 4x COM, 2x USB 3.0, GPIO, Dual LAN The PPC-J213RW-1A1 provides users with a cost-effective and energy-efficient panel PC with an Intel Pentium N4200 processor - alternatively, an Intel Celeron N3350 version is available - and a wide range of interfaces including digital I/O, serial COM, USB 3.0 and GbE Dual LAN. With the choice between an Intel N4200 Quad Core and an Intel N3350 Dual Core CPU as well as an M.2 SSD and a 2.5" drive in an internal Drive Bay, the PPC-J213RW-1A1 offers the option to scale the Industrial Panel PC to its task. The computer supports DDR3L Low Energy RAM on two banks in Dual Channel design, which can accommodate a maximum capacity of 8 GB. The native I/O include four serial COM ports in RS232 as well as RS232/422/485, double USB 3.0, 8 bit digital GPIO via DB-9 connector and Dual Gigabit Ethernet for simple, redundant or branched LAN. The 21.5'' display uses a resistive touch screen with a 1080p Full HD resolution of 1920 x 1080 pixels in 16:9 format. For complex HMI applications, the Panel PC PPC-J213RW-1A1 also offers the option to integrate additional external monitors or touch screens via VGA or HDMI. Typical application scenarios for the PPC include Smart Production and Factory Automation, Kiosk PC including ATMs and service terminals as well as HMI and SCADA interfaces in industrial environments.
