PPC-F08B-BT-J1/2G/R

PPC-F08B-BT-J1/2G/R

IEI
SKU: 06904500

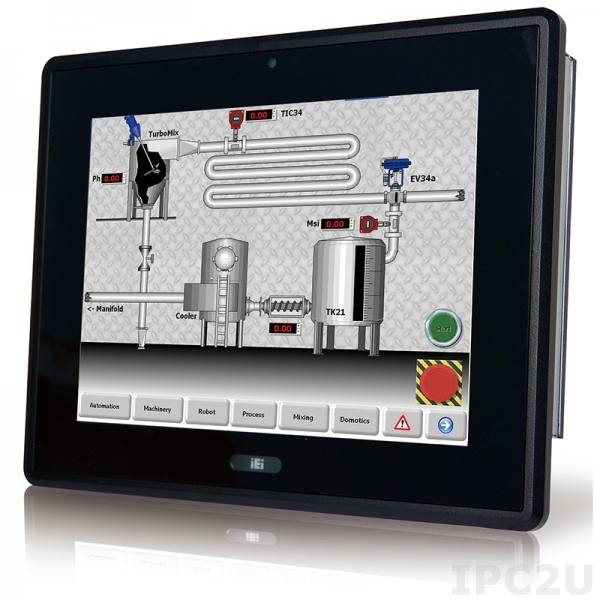

8" 500 cd/m2 XGA Fanless Panel PC, resistive touch, Intel Celeron J1900 2.0GHz, 2Gb DDR3L, 2xUSB 3.0, 2xUSB 2.0, 2xCOM(1xRJ-45), 2xGbELAN, 1xPCIe Mini, mSATA, Audio, power adapter 9-36V DC
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Panel, 19" Rackmount, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
800x600 Dots
Aspect Ratio
4:3
Brightness
500 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
9..30 V
Power Consumption
38 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
222.2 mm
Height
182.2 mm
Depth
44 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.17 kg
