PPC-212P-A1

PPC-212P-A1

Arestech
SKU: 57011300

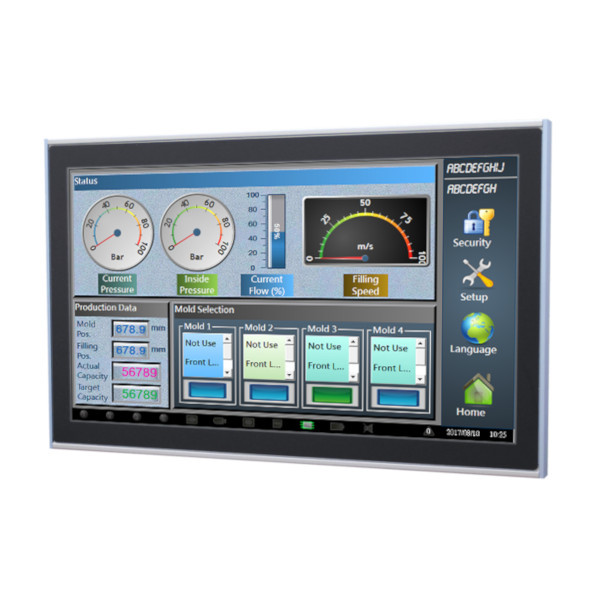

21.5" Fanless Panel PC, 250 cd/m2, 1920 x 1080, PCAP Touch Screen, Intel Celeron J1900 2.0 GHz CPU, Up to 8GB DDR3L, 2.5" SATA Bay, 2xHDMI, 2x Gbit LAN, 4xUSB, 4xCOM, 8-bit DI/DO, 9.36V DC-In
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Consumption
19.2 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8.1, Windows 10
Dimensions and weight
Width
524.3 mm
Height
323.8 mm
Depth
64.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.99 kg
Gross Weight
10.33 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Consumption
19.2 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8.1, Windows 10
Dimensions and weight
Width
524.3 mm
Height
323.8 mm
Depth
64.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.99 kg
Gross Weight
10.33 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Consumption
19.2 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8.1, Windows 10
Dimensions and weight
Width
524.3 mm
Height
323.8 mm
Depth
64.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.99 kg
Gross Weight
10.33 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Consumption
19.2 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8.1, Windows 10
Dimensions and weight
Width
524.3 mm
Height
323.8 mm
Depth
64.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
6.99 kg
Gross Weight
10.33 kg
