PPC-152R-A1

PPC-152R-A1

Arestech
SKU: 57013200

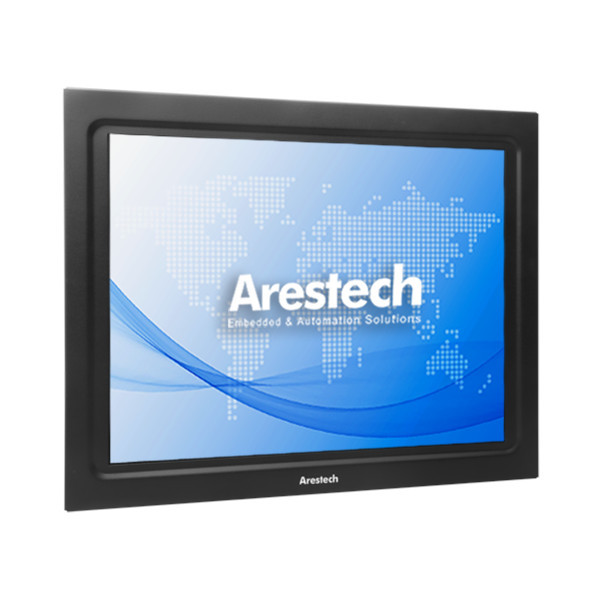

15" Fanless Panel PC, 300 cd/m2, 1024 x 768, Resistive Touch Screen, Intel Celeron J1900 2.0 GHz CPU, Up to 8GB DDR3L, 2.5" SATA Bay, HDMI, VGA, 2x Gbit LAN, 4xUSB, 4xCOM, 8-bit DI/DO, 9.36V DC-In
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Chassis
IP54
Type
Fanless
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
300 Cd/m2
Contrast Ratio
600~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 4xUSB
System Power Input
Input Voltage DC
9..36 V
Power Consumption
18.4 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1, Solaris 10, Ubuntu
Dimensions and weight
Width
365 mm
Height
291 mm
Depth
59 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.37 kg
Gross Weight
7.1 kg
