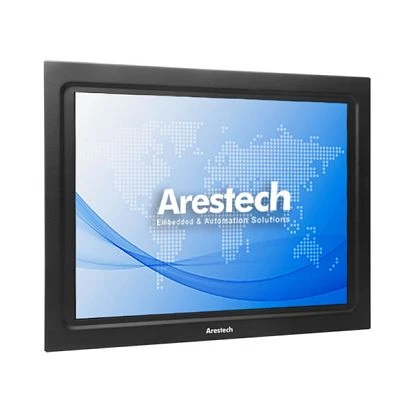

PPC-152P-A1

PPC-152P-A1 Fanless Panel PC feat. Intel Celeron J1900, up to 8 GB DDR3L RAM, 4x USB, 4x Serial COM, Dual LAN, 2x Mini Card For use in HMI or SCADA applications, industrial panel PCs such as the PPC-152P-A1 serve as an interface, which in this case not only performs input tasks, but based on an efficient Intel Celeron J1900 processor also allows the use as a central control server for peripheral devices with connection via USB 3.0 and 2.0, Serial COM and an 8-bit DIO as well as Dual LAN. Thanks to an Intel Celeron J1900 processor and a maximum 8 GB DDR3L low energy RAM, the PPC-152P-A1 not only stands for the performance of a Panel PC with 2.42 GHz Quad Core CPU, but also combines this with the efficiency and cost-effectiveness of an Embedded Mini PC, which is designed for continuous operation 24/7/365. For interaction with peripheral devices, the 15'' Fanless PPC features numerous interfaces including dual USB 3.0 and 2.0, three serial COM in RS232 and one in RS232/422/485 as well as 8 bit GPIO. These I/O are complemented by multimedia connectors for audio line out and HDMI as well as internal expansion slots in full size and half size Mini PCIe format. The 15'' projected capacitive touch screen has an XGA resolution of 1024 x 768 pixels with a brightness of 300 cd/m² and a contrast ratio of 600:1. The PPC-152P-A1 Panel PC is used for industrial automation, technical monitoring, kiosk PC and POS systems as well as centralized system monitoring, for example in smart homes.
