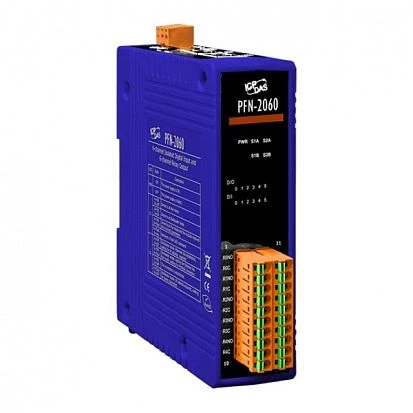

PFN-2060
ICP DAS
SKU: 06402400
PROFINET I/O Module (Isolated 6-ch DI & 6-ch Relay Output) (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
PROFINET slave
Digital Input
Total channels of digital input
6
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
6
Contact rating of relay (Form A)
0.6A@125V AC, 2A@30V DC, 0,6A@110V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
107 mm
Height
126 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.3 kg
Gross Weight
0.3 kg
