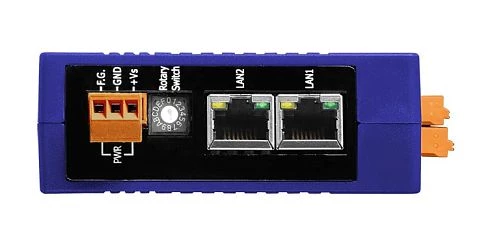

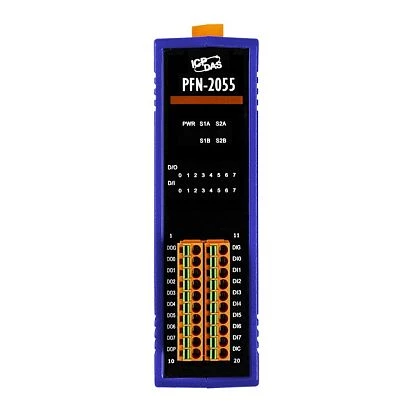

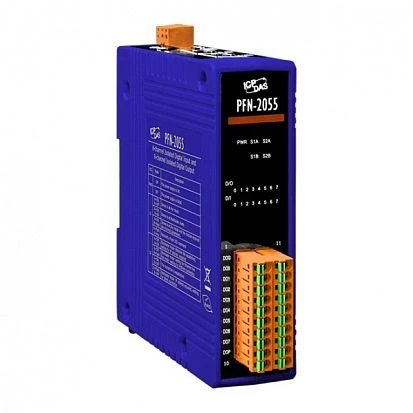

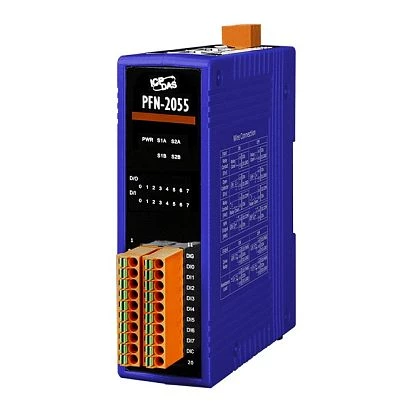

PFN-2055
ICP DAS
SKU: 09899300
PROFINET I/O Module (Isolated 8-ch DI & 8-ch DO) (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
PROFINET slave
Digital Input
Total channels of digital input
8
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Digital Output
Total channels of digital output
8
Type
MOSFET
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
107 mm
Height
126 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.3 kg
