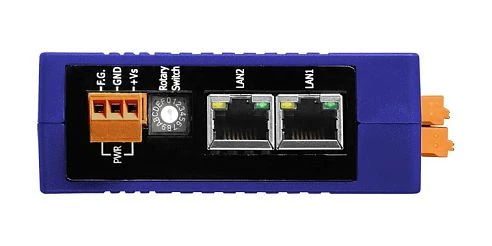

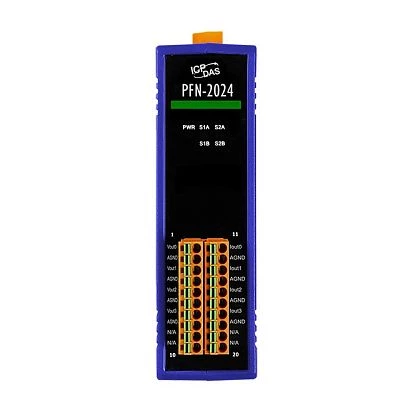

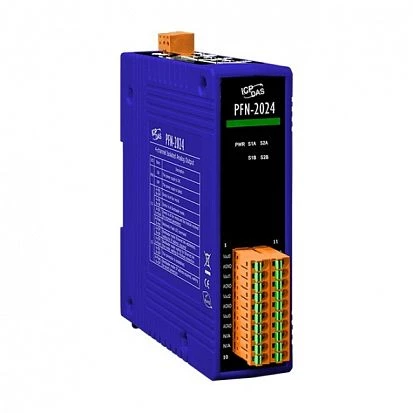

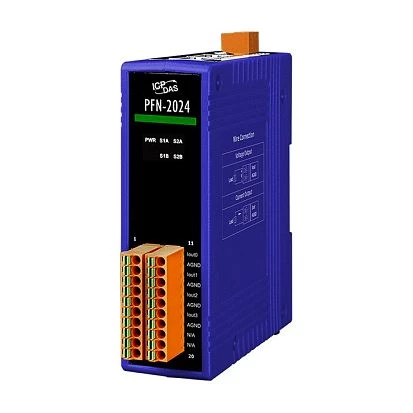

PFN-2024
ICP DAS
SKU: 07089700
PROFINET I/O Module (4-channel Isolated Analog Output Module) (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
PROFINET slave
Analog Output
Channels of analog input
4
DAC Bit Rate
16 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
107 mm
Height
126 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.3 kg
